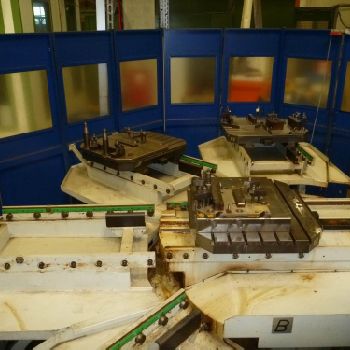

Mandelli Storm 1400 Machining center - palletized
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Slovakia |
| Category: | Machining Centers |
| Manufacturer: | Mandelli |
| Model: | Storm 1400 |
| Year of Make: | 2001 |
| Description: | MANDELLI - univerzal machining center - type STORM 1400 - 2001 |- 5 side machining |- system Siemens 840D |- spindle play 0,003 mm at appr. 20 mm from spindle nose (in 2015 change of spindle bearings) |- spindle play 0,01 mm at appr. 150 mm from spindle nose |- spindle through cooling |- Heidenhain direct measurings on all 3 axis |- X/Y/Z=1600/1180/1400 mm |- pallet size 800x1000 mm (6 pallets, type ISO 800) |- table indexing 360000x0,001 |- max pallet load 2500 kg |- max diameter and height for machining: d1480x1360 mm |- spindle ISO 50 - spindle RPMs upto 6000 (programing speed rate 30-6000 RPM) |- spindle motor 37 kW |- max torque 565 Nm (at 625 RPM) |- ATC 60 (chip to chip time 6-9 s) |- RENISHAW laser tool usage measuring |- in 2015 change of spindle bearings |- working hours 69000 (January 2017) |- excellent condition |
| Technical Specifications: | Nbr of pallets: 6.0 Axis X: 1600.0 mm Axis Y: 1180.0 mm Axis Z: 1400.0 mm Type: Vertical CNC: Siemens 840D Palette length: 800.0 mm Palette width: 1000.0 mm Max. part weight: 2500.0 kg Number of tool pockets: 60.0 Spindle taper: ISO 50 Spindle rotation speed: 6000 rpm Spindle motor power: 37.0 kW Length x width x height: - × - × - Weight: - Worked hours: 69000 hours State: excellent At local norms: --------- Status: visible |
