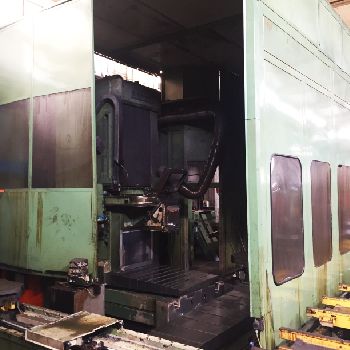

Used Mandelli Regent 1500 Machining center - 5 axis
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Italy |
| Category: | CNC Machining Centers |
| Manufacturer: | Mandelli |
| Model: | Regent 1500 |
| Year of Make: | 1990 |
| Description: | Year 1990|X axis 2800 mm |Y axis 2000 mm |Z axis 1500 mm |Rotary table and pallet changer (ISO 1000):|axis B: positions 360000 |positioning uncertainty P (VDI 3441) degrees 12 ’’ |medium positioning dispersion PS (VDI 3441) 6 ’’ |fast speed 1 / min 3.5 |working speed 1 / min 0.035: 3.5 |available capacity 4000 kg |pallet table (DIN 55201) 1000x1250 mm |net capacity pallet kg 2900-2700 |pallet change time (VDI 2852) sec 70 |pallet cycle change time sec 50 |Linear axes:|fast speed axes X, Y, Z mm / min 10000 |working speed mm / min 10: 10000 |useful thrust N 22000 |positioning uncertainty P (VDI 3441) mm 0.02 / 1000 |medium positioning dispersion PS (VDI 3441) mm 0.01 / 1000 |average inversion error U (VDI 3441) mm 0.005 / 1000 |Spindle:|cono ISO 50 |100% continuous power (opt.) 1 / min 3000/3800 |max torque (opt.) Nm 1329/1355 |horizontal / vertical head rotation time sec. 4 |vertical spindle light / upright mm 935 |Tool magazine:|number of seats in each warehous |
| Technical Specifications: | Axis X: 2800.0 mm Axis Y: 2000.0 mm Axis Z: 1500.0 mm Table length: 1000.0 mm Table width: 1250.0 mm Max. part weight: 2900.0 kg Number of tool pockets: 72.0 Spindle taper: ISO 50 Length x width x height: - × - × - Weight: 50000.0 kg State: good At local norms: --------- Status: visible |
