Used FAGIMA 12-60 Machining center - vertical
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Italy |
| Category: | Vertical Machining Centers |
| Manufacturer: | FAGIMA |
| Model: | 12-60 |
| Year of Make: | 2000 |

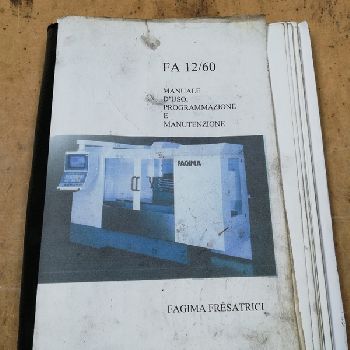

| Description: | Table dimensions 1200 x 600 mm |Allowable weight on table 1000 kg |Axis travel x 1000 mm |Y axis travel 600 mm |Axis travel z 550 mm |Rapid axis x m / min 18 |Rapid y-axis m / min 18 |Rapid z-axis m / min 18 |Axis work progress x mm / min 10000 |Y axis work advance mm / min 10000 |Z axis work advance mm / min 10000 |Spindle speed rpm 100-6000 |Spindle motor power (cont / 30 min) kw 15 |Tool positions n 24 |Spindle iso 40 connection |Tool max placed next occupied 120 mm |Max tool length 300 mm |Max tool weight 10 kg|Heidnhain 410 digital cnc |Slip lengthening compensation probe |Manuals and CE declaration |
| Technical Specifications: | Axis X: 1000.0 mm Axis Y: 600.0 mm Axis Z: 550.0 mm Rotary table (4th axis): no Type of CNC: HEIDNHAIN 410 Table length: 1200.0 mm Table width: 600.0 mm Max. part weight: 1000.0 kg Number of tool pockets: 24.0 Spindle taper: ISO 40 Max. spindle speed: 6000 rpm Spindle motor power: 15.0 kW Length x width x height: - × - × - Weight: - State: good At local norms: yes Status: visible |
