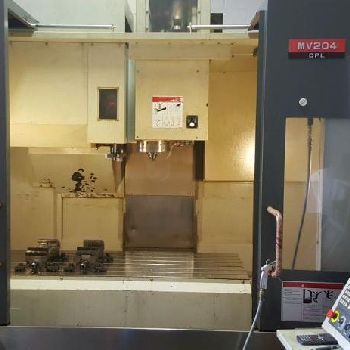

Quaser MV 204CPL Machining center - vertical
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Vertical Machining Centers |
| Manufacturer: | Quaser |
| Model: | MV 204CPL |
| Year of Make: | 2010 |
| Description: | x-travel 1524 mm |y-travel 700 mm |z-travel 610 mm |CNC-control FANUC iM-18 B Manual Guide |table-size 1700 x 700 mm |max. table load 2000 kg |spindle taper BT-40 |spindle turning speed range 12000 U/min |feed stepless 12000 mm/min |rapid traverse 36 m/min |drive capacity - spindle motor 30 kW (40% ED) |tool change unit 48 Pos. |coolant IKZ 20 bar |voltage 400 V |total power requirement 35 kVA |weight of the machine ca. 11 t |dimensions of the machine ca. 4,52 x 2,90 x 3,15 m |
| Technical Specifications: | Axis X: 1524.0 mm Axis Y: 700.0 mm Axis Z: 610.0 mm Rotary table (4th axis): no Type of CNC: FANUC iM-18 B Manual Guide Table length: 1700.0 mm Table width: 700.0 mm Max. part weight: 2000.0 kg Number of tool pockets: 48.0 Spindle taper: BT40 Max. spindle speed: 12000 rpm Spindle motor power: 30.0 kW Length x width x height: 4520.0 mm × 2900.0 mm × 3150.0 mm Weight: 11000.0 kg State: good At local norms: --------- |
