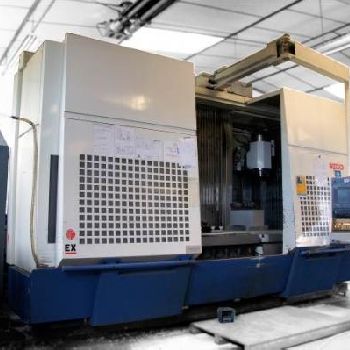

HURON EXN30 Machining center - 5 axis
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | France |
| Category: | CNC Machining Centers |
| Manufacturer: | Huron |
| Model: | EXN30 |
| Year of Make: | 1999 |
| Description: | SPECIFICATIONS |CNC Siemens 840D |Angle of rotation axis - |Angle of rotation axis C - |Angle of rotation axis - |Angle of rotation axis B - |Plate diameter 800 x 700 mm |Table area 1600 x 750 mm |Grooves (width x spacing x no.) 18 x 100 x 6 mm |Rotation angle B + / - 90 |Rotation angle 360 C |Longitudinal travel X-axis 2400 mm |Cross travel Y-axis 700 mm |Vertical travel Z axis 800 mm |Spindle speed 100 to 14,000 rev / min |Taper HSK63-A |Spindle motor 25 Kw |Rapid traverse (X / Y / Z) 40 m / min |Type central store |Number of tools 32 |10 sec tool change time |Max tool diameter. 100 mm |Tool length max. 300 mm |Weight max tool. 10 kg |Power installed 60 Kw |Year 1999 |Table 160 mm Thickness |Permissible load on the fixed table 2400 kg |Load capacity 1200 kg on the shelf |EQUIPMENT |Yes chip conveyor |Rules measurements on 3 axis yes |Automatic calibration of rotary axes optional |optional fork head |Optional palletizing |MT version for turning / m |
| Technical Specifications: | Axis X: 2400.0 mm Axis Y: 700.0 mm Axis Z: 800.0 mm Table length: 800.0 mm Table width: 700.0 mm Spindle taper: HSK63-A Max. spindle speed: 14000 rpm Length x width x height: 6445.0 mm × 5460.0 mm × - Weight: 21500.0 kg State: good At local norms: --------- |
