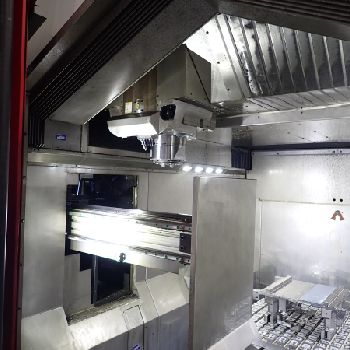

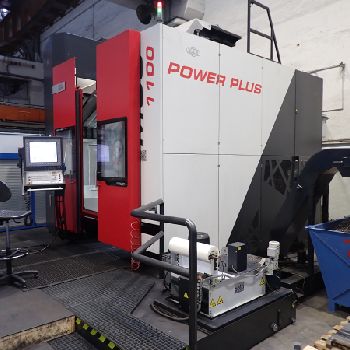

Kovosvit Mas MCU 1100 VT-5X power plus Machining center - 5 axis
$ 557,133
| Type: | Buy-It-Now |
| Location: | Czechia |
| Category: | CNC Machining Centers |
| Manufacturer: | KOVOSVIT MAS |
| Model: | MCU 1100 VT-5X power plus |
| Year of Make: | 2015 |
| Description: | POWER PLUS |X-axis travel 1100 mm |Travel in Y axis 1550 mm |Travel in Z axis 1000 mm |Table clamping surface 1000 x 900 mm |Maximum table load 1700 kg |360 rotary axis |Tilting axis A +45 -130 |Cutting accuracy 0,001 |Maximum table speed axis A-23, axis C-500 rpm |Accuracy of setting X, Y, Z coordinates 0.006 mm |Repetition accuracy 0.004 mm |Feed range in X, Y, Z axes 1- 50 000 mm.min-1 |Rapid feed in X, Y, Z axes 50 000 mm.min-1 |Continuously variable spindle speed range 20 - 10 000 rpm |Spindle taper ISO 50 |Spindle drive power (40% ED) 39/50 kW |Maximum torque S 1 / S 6 451/579 Nm |Number of tools in magazine 2 section 120 pcs |Maximum tool diameter in magazine 130 mm |Maximum tool length in magazine 600 mm |Max. tool weight for automatic change 30 kg |Ground plan dimensions 6550 x 6500 mm |Machine height 4800 mm |Machine weight 35 000 kg |Total power input of the machine is 90 kVA |Working pressure of pneumatic equipment 0,6 MPa |T grooves (number x |
| Technical Specifications: | Axis X: 1100.0 mm Axis Y: 1550.0 mm Axis Z: 1000.0 mm Type: Vertical Max. part weight: 1700.0 kg Spindle taper: ISO 50 Length x width x height: - × - × - Weight: - State: excellent At local norms: --------- Status: under power |
