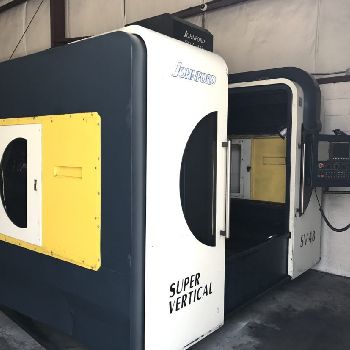

Johnford SV 48 vertical machining center
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Spain |
| Category: | Vertical Machining Centers |
| Manufacturer: | JOHNFORD |
| Model: | SV 48 |
| Year of Make: | 2002 |
| Description: | Surface of the table: 1300x700 mm |X-axis travel: 1220 mm |Y-axis travel: 710 mm |Z-axis travel: 630 mm |Distance from the center of the spindle to the column: 740 mm |Distance from the spindle cone to the table: 730 mm |Spindle cone: BT 40 |Spindle speed: 60-10000 rpm |Spindle motor: 15 HP |Fast feedrate (X, Y, Z axes): 24-24-24 m / min |Spindle speed: 1-12000 mm / min |Number of tools: 24 |
| Technical Specifications: | Axis X: 1220.0 mm Axis Y: 710.0 mm Axis Z: 630.0 mm Rotary table (4th axis): no Table length: 1300.0 mm Table width: 700.0 mm Number of tool pockets: 24.0 Spindle taper: BT 40 Max. spindle speed: 10000 rpm Spindle motor power: 11.2 kW Length x width x height: - × - × - Weight: - State: good At local norms: --------- Status: being refitted |
