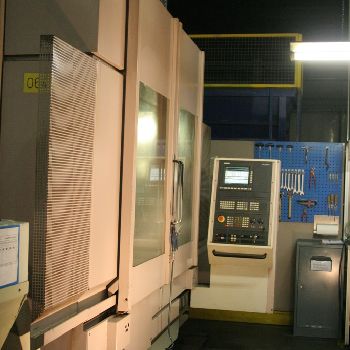

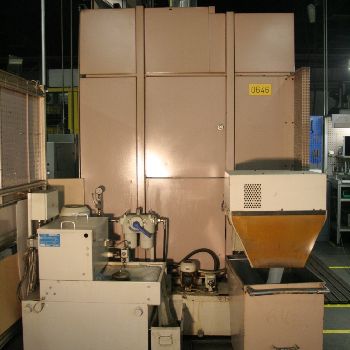

SW Schwäb. Werkzeugm BA 18 Machining center - vertical
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Vertical Machining Centers |
| Manufacturer: | Schwäbische Werkzeugmaschinen |
| Model: | BA 18 |
| Year of Make: | 1997 |

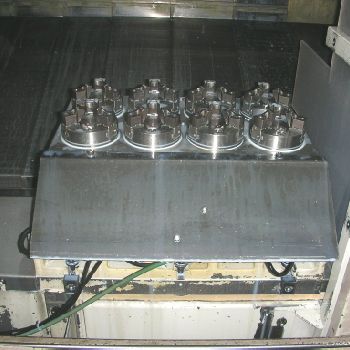

| Description: | SW Schwbische Werkzeugmaschinen (Germany) |Vertical CNC Machining Centre with 2 Working Stations |Model BA 18 Year 1997 |________________________________________________________ |Table size, each 600 x 375 mm |Table travel, longitudinal, X Axis 500 mm |Travel of milling slide, cross, Y Axis 350 mm |Travel of milling slide, vertical, Z Axis 350 mm |Mounting height under vertical spindle 100 / 450 mm |Distance between vertical head and column 390 mm |Spindle taper (69872) SK 40 |Spindle speeds, infinitely variable 20 10,000 rpm |Drilling capacity in steel, St 60, approx. 28 mm |Milling capacity, approx. 150 m |Feeds in all 3 axes / quick feed max. 0 25,000 mm/min |Spindle drive 6 / 9 kW |Total electrical load, approx. 15 kW - 380V - 50 Hz |Weight, approx. 6,000 kg |Accessories / Special Features: |* SIEMENS CNC Contouring Control, Model SINUMERIK 840 C for 3 axes, with monitor and |all the usual subprograms and options, built in into the pendant control. |* 2 tabl |
| Technical Specifications: | Axis X: 500.0 mm Axis Y: 350.0 mm Axis Z: 350.0 mm Rotary table (4th axis): no Type of CNC: Siemens Sinumerik 840 C Table length: 600.0 mm Table width: 375.0 mm Max. part weight: 400.0 kg Number of tool pockets: 36.0 Spindle taper: SK 40 Max. spindle speed: 10000 rpm Spindle motor power: 9.0 kW Length x width x height: - × - × - Weight: 6000.0 kg State: good At local norms: --------- Status: visible |
