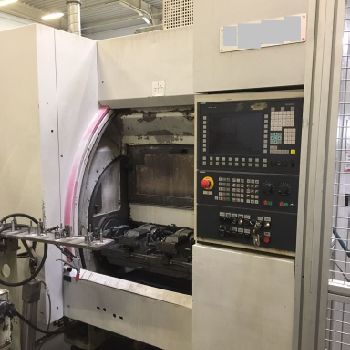

Sw (Schwaebische Werkzeugmaschinen) BAS03-22 Machining center - vertical
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Czechia |
| Category: | Vertical Machining Centers |
| Manufacturer: | Schwäbische Werkzeugmaschinen |
| Model: | BAS03-22 |
| Year of Make: | 2006 |
| Description: | Type: BAS03-22 |Producer: SW (SCHWAeBISCHE WERKZEUGMASCHINEN) |Created: 2006 |parameters: |Control system: SIEMENS 840 D |4 axes |Two spindles |Accuracy: 0.010 mm |Travel: |X: 300 mm |Y: 400 (650) mm |Z: 400 mm |Feed drives: |X: 1-75000 mm / min |Y: 1-75000 mm / min |Z: 1-75000 mm / min |Feed force: |X: 6000 N |Y: 6000 N |Z: 6000 N |Speed range: 1-17,500 rpm |Motor power: 15.5 kW |Torque: 42 Nm |Spindle distance: 300 mm |Main spindle diameter: 70 mm |Main spindle storage: 3 compartment |Machine dimensions: 3650 x 2750 x 3100 mm |Machine weight: 7500 Kg |Equipment: |Paper band filter |pallet changer |chip conveyor |KSS plant |Control unit control |2x 20 tool stations HSK A63 |
| Technical Specifications: | Axis X: 300.0 mm Axis Y: 400.0 mm Axis Z: 400.0 mm Rotary table (4th axis): no Type of CNC: SIEMENS 840 D Max. spindle speed: 17500 rpm Length x width x height: 3650.0 mm × 2750.0 mm × 3100.0 mm Weight: 7500.0 kg State: good At local norms: --------- Status: under power |
