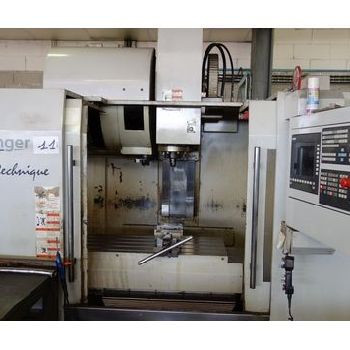

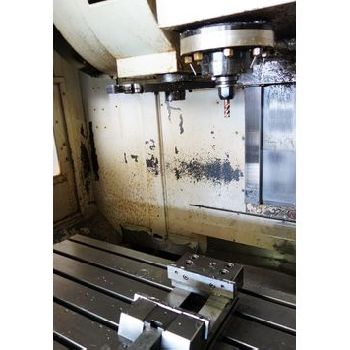

MICROCUT CHALLENGER OTV 1000 Machining center - vertical
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | France |
| Category: | Vertical Machining Centers |
| Manufacturer: | Challenger |
| Model: | CHALLENGER OTV 1000 |

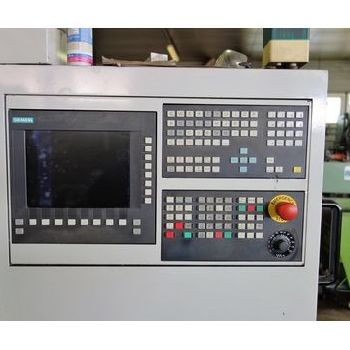

| Description: | Longitudinal stroke - X 1020 mm |Cross travel - Y 510 mm |Vertical stroke - Z 510 mm |CNC SIEMENS SINUMERIK 840 D + SHOPMILL |Number of axes 3 |Taper in spindle ISO 40 |Table area 1150x500 mm |Maximum weight allowed 800 Kg on the table |spindle speed 150-12000 rev / min |Number of grooves 5 |Maximum width of the grooves 18 mm |Maximum distance between table and spindle nose 610 mm |Minimum distance between the table and the spindle nose 100 mm |Distance between the axis of the pin and the frame 510 mm |24 Tools store |Maximum tool length 300 mm |maximum weight of tools 8 Kg |Maximum tool diameter 100 mm |Fast forward X and Y 20,000 mm / min |Fast forward Z 18000 mm / min |automatic advances 1-8000 mm / min |Spindle motor 22 kilowatts |Approximate weight 5000 kg |3800x2600x2600 mm Dimensions |3800x2600x2600 mm Dimensions |Weight 5000 kg |
| Technical Specifications: | Axis X: 1020.0 mm Axis Y: 510.0 mm Axis Z: 510.0 mm Rotary table (4th axis): no Type of CNC: SIEMENS SINUMERIK 840 D + Shopmill Table length: 1150.0 mm Table width: 500.0 mm Max. part weight: 800.0 kg Number of tool pockets: 24.0 Spindle taper: ISO 40 Max. spindle speed: 12000 rpm Spindle motor power: 22.0 kW Length x width x height: 3800.0 mm × 2600.0 mm × 2600.0 mm Weight: 5000.0 kg State: good At local norms: --------- |
