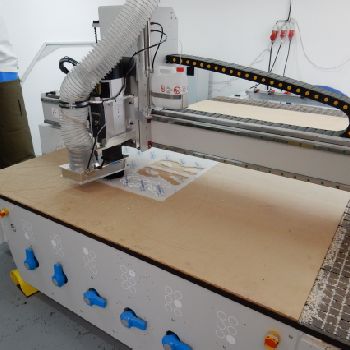

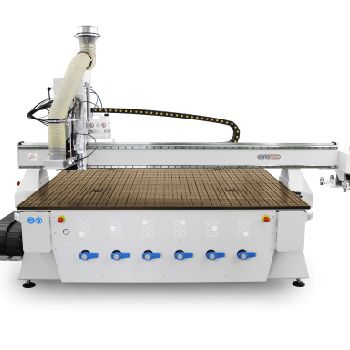

Comagrav NOTUS PLUS 3000 vakuum ATC cnc horizontal milling machine
$ 43,191
| Type: | Buy-It-Now |
| Location: | Czechia |
| Category: | Horizontal Milling Machines |
| Manufacturer: | ATC |
| Model: | NOTUS PLUS 3000 vakuum ATC |
| Year of Make: | 2017 |
| Description: | The new multifunctional CNC milling cutter - SKORO NOT USED - is equipped with many useful features for professional work. The massive design of the frame is enhanced by high-quality welding and relieved of tension for long service life. The modern drive system delivers AC servo technology for high cut speeds and precision. Technical Specifications: * Work area 2100 x 3150 mm * 9kW professional milling spindle, 24000 RPM, ISO-30 pneumatic clamping, linear tool magazine for 8 tools, freq. 4 Vacuum Pumps 250m3 / h, 5.5kW with hose and flange, safety switch for vacuum pump motor, analogue vacuum gauge * 6 vacuum zones - front panel zone control * dust and sponge preparation Pneumatic ATC, pneumatic parking, 125 mm diameter and spindle with automatic exchange * PROFI spray system with flexible hose mixes fluid with compressed air. Liquid and air control * ISO 30 ER-32 tool taper without collet, black nut * Industrial hood, 3-phase 1.1 kW (1560 m3 / h), 125 mm throat. Textile waste bag, PES |
| Technical Specifications: | Table length: 3150.0 mm Table width: 2000.0 mm Spindle taper: ISO 30 Max. spindle speed: 24000 rpm Spindle motor power: 9.0 kW Overhauled: no Length x width x height: - × - × - Weight: - State: like new At local norms: yes Status: visible |
