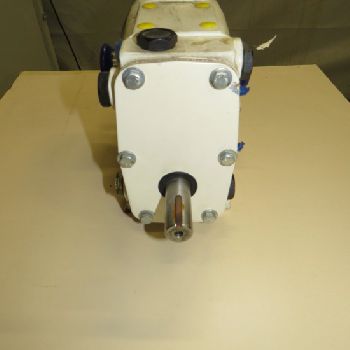

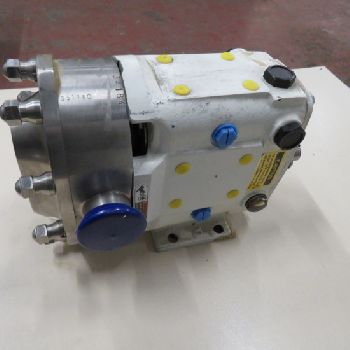

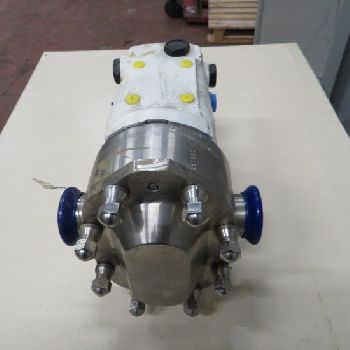

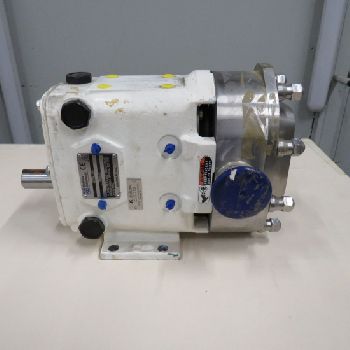

Rotary Lobe Pump WAUKESHA 018U2
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | France |
| Category: | Food Accessories |
| Manufacturer: | Waukesha |
| Model: | Universal 2 018-U2 |
| Year of Make: | 2004 |
| Description: | Rotary Lobe Pump WAUKESHA 018U2|Bi-directional flow |Large diameter shafts for greater strength & stiffness |Rotor/shaft connection sealed from the product zone |Extended-life outer seal |Mechanical seals standard |316 pump body standard; 316L pump body optional |Heavy-duty bearing frame; stainless steel bearing frame optional |Non-galling Waukesha "88 alloy rotors for tighter running clearances and higher efficiencies |Additional options: CIP capability, free draining body and cover for side mounted applications, seal flushing, steam-in-place, aseptic version |Maximum pressure: 200-500 psi (13.8-34.5 bar), depending on model |Temperature range: -40 F (-40 C) to 300 F (149 C)|DISPLACEMENT PER REVOLUTION: 0.029 Gal. (0.110 Liter) |NOMINAL CAPACITY TO: 20 GPM (4.5 m/hr.) |MAXIMUM PRESSURE: 200 PSI (13.8 bar) |
| Technical Specifications: | Length x width x height: 396.0 mm × 177.0 mm × 211.0 mm Weight: - State: good At local norms: --------- Status: visible |
