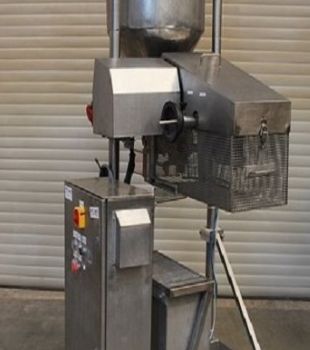

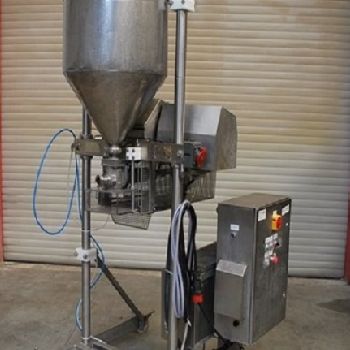

HEMA TD 3.1 Vial / ampoules filler
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | France |
| Category: | Filling Machines |
| Manufacturer: | Hema |
| Model: | TD 3.1 |
| Year of Make: | 1994 |

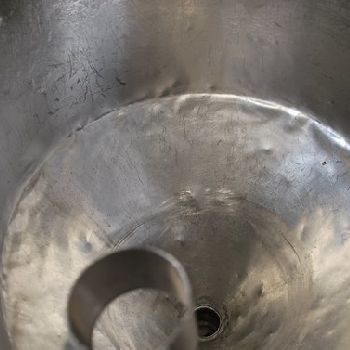

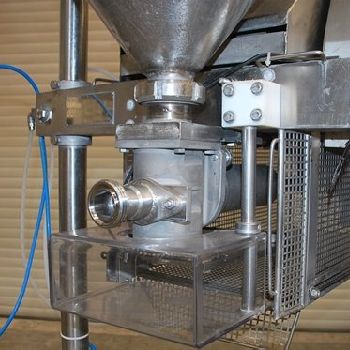

| Description: | Semi-automatic dosing machine with volumetric dispenser for liquid product, sticky, viscous and pasty.|Equipments:|Single conical hopper stainless steel product feed casing. |Capacite 100 liters. |Volumetric piston dosing station interchangeable according to desired dosing with stainless steel rotary valve. |Flywheel for setting the dosage. |Filling outlet diameter 38 mm without spout, currently |drive of the metering piston by electronic motor-variator. |Adjustable working height. |Mounted on stainless steel chassis with wheels.|Current tools: |1 piston diameter 70 mm. dosage of 80 to 692 ml |Accuracy +/- 1gr|Capacity: Dosage from 40 to 1100 ml depending on the diameter of the piston on the metering machine|Maximum hourly production: 1000 to 1500 vials / pots depending on the nature and volume of the product.|Total electric power: 1,5 kw |
| Technical Specifications: | Capacity units/hour: 1500 u/h Vial diameter: 70.0 mm Type: Semi- automatic Motor power: 1.5 kW Length x width x height: 1300.0 mm × 1200.0 mm × 2220.0 mm Weight: 300.0 kg State: good At local norms: --------- Status: visible |
