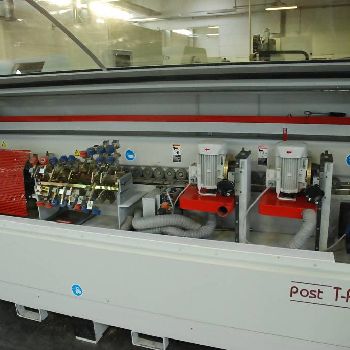

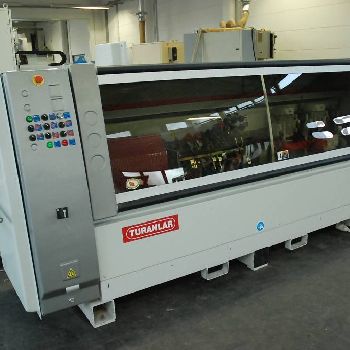

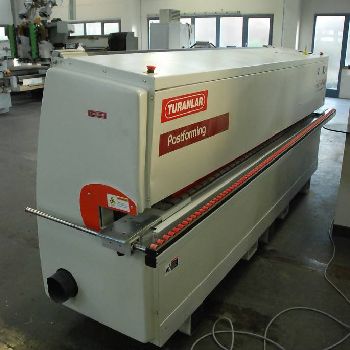

Turanlar T-PF 280 Gluing machine
$ 8,617
| Type: | Buy-It-Now |
| Location: | Belarus |
| Category: | Gluing Machines |
| Manufacturer: | Turanlar |
| Model: | T-PF 280 |
| Year of Make: | 2009 |
| Description: | The machine T-PF 280 is designed for gluing plastic, laminate on board materials (particleboard, MDF) by postforming. |The special structure of the welded frame ensures high quality of the edge material application. The upper steel clamp with two rows of rollers on the bearings, designed for stable attachment of the machined parts. Manual height adjustment with reading position on the digital mechanical indicator. |Feeding conveyor caterpillar type, consisting of links made of special material. The links are covered with wear-resistant rubber with a high coefficient of friction, which guarantees reliable retention of the treated panel, and hence high precision of processing. The feed conveyor is moved by two hardened steel guides, one rounded, the other flat, which ensures straightness of movement and resistance to lateral loads. |The T-PF 280 machine provides high-quality gluing of facing materials and performs the following operations: | Preheating of overhangs of facing material |
| Technical Specifications: | Working width: 70.0 mm Working height: 870.0 mm Engine power: 7.6 kW Length x width x height: 1600.0 mm × 920.0 mm × 870.0 mm Weight: 1340.0 kg State: good At local norms: --------- Status: visible |
