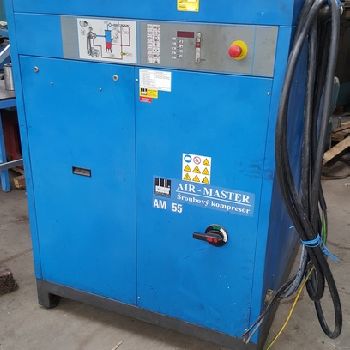

Schneider Druckluft Air-Master AM 55-7,5 B1 Dry screw compressor
$ 7,966
| Type: | Buy-It-Now |
| Location: | Czechia |
| Category: | Screw Compressors |
| Manufacturer: | Schneider Druckluft |
| Model: | Air-Master AM 55-7,5 B1 |
| Description: | flow rate 9500 l / min |inlet pressure of 7.5 bar |operating pressure of 6.5 bar |safety valve opens at 8.8 bar |maximum operating speed of 3860 / min |installed capacity of 55 kW |3860 revolutions / min |Screw block Enduro 25 |first filling 35 l |thermal radiation of 37 kW |temperature difference 15 C |Residual oil share of 2-3 mg / m3 |max. temperature 110 C, the compressor |2-pole motor MEC 225 |Voltage 400-3 / 50 V |load current at start 200 A |current load at full power 100 A |setting of thermal relay 59 A |max. number of starts per hour. 10 |noise level at 1 m 76 db (A) |ambient temperature 5 to 35 C |a pressed air connection 1 1/2 inside |Dimensions (LxWxH) 1350x1130x1500 mm |Weight 1100 kg |Price is negotiable. |
| Technical Specifications: | Nominal Pressure: 7 bar Output (m3 /hour): 9500 m³/h Engine power: 55.0 kW Engine power: 74 Hp Tank capacity: 35 L Volts: 400 V Frequency: 50 Hz Sound level: 76 dB(A) Length x width x height: 1350.0 mm × 1130.0 mm × 1500.0 mm Weight: 1100.0 kg State: good At local norms: yes Status: visible but unplugged |
