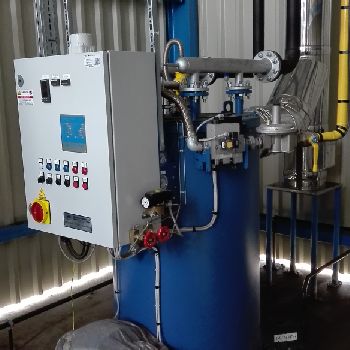

Babcock Wanson TPC 400 kW Industrial oven
$ 28,813
| Type: | Buy-It-Now |
| Location: | Poland |
| Category: | Industrial Furnaces |
| Manufacturer: | Wanson |
| Model: | TPC 400 kW |
| Year of Make: | 2016 |
| Description: | Specifications and specifications of the furnace: |Model: TPC 400 B |Brand: Babcock Wanson |Year of manufacture: 2016 |Warranty: 1 year |Execution: vertical |Power: 400 kW |Heating surface: 12,6 m2 |Design temperature: 400 C |Maximum working temperature: 350 C |Design pressure: 10 bar |Maximum operating pressure: 10 bar |Test pressure: 15 bar |Coil capacity: 94 dm3 |Factor: thermal oil |Nominal flow: 20 m3 / h |Nominal inlet temperature: 310 C |Nominal outlet temperature: 340 C |Thermal efficiency: 87% |Pressure loss on the boiler: 1.15 bar |Fuel: LPG |Burner adjustment: modulation |Maximum fuel consumption: 19 m3 / h |Minimum fuel pressure: 50 mbar |Maximum fuel pressure: 300 mbar |Main power supply: 400 V, 50 Hz |Auxiliary power supply: 230 V, 50 Hz |Installed power: 9,5 kW |Weight (empty device): 920 kg |Degree of protection of electric motors: IP55 |Degree of protection: IP55 |CE mark: B.W.I. |Furnace furnace: control cabinet + internal reducer|The s |
| Technical Specifications: | Length x width x height: 852.0 mm × 1381.0 mm × 1893.0 mm Weight: 920.0 kg Worked hours: 200 hours Hours under power: 200 hours State: excellent At local norms: --------- Status: dismantled |
