Kardex Shuttle XP250 - 05000914
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Netherlands |
| Category: | Pallet Racks |
| Manufacturer: | Kardex |
| Model: | Shuttle XP250 |
| Year of Make: | 2005 |

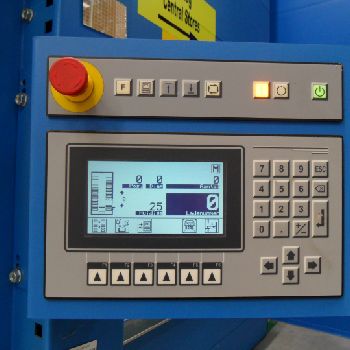

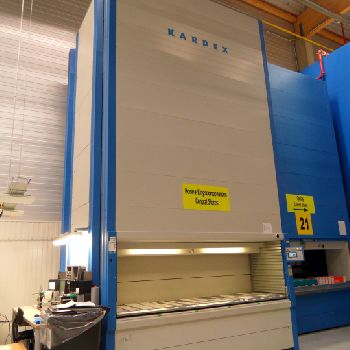

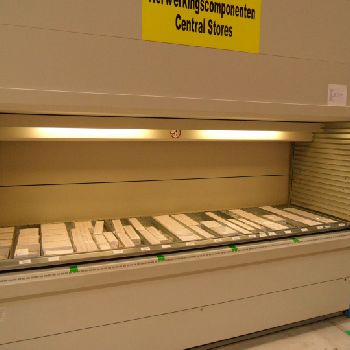

| Description: | VLM Kardex Shuttle XP250 automated storage system|Kardex |Model No. : SHUTTLE-XP-250-3050x813 |Control : C2000, OP-C2000 B/W |Type : S/N30/N22S13B/N75D15/20 |Serial No. : 05000914/001 |Year of construction : 2005 |Total Load : 2x33400 kg |Load per tray : 110 & 220 kg |Tray dimension : 3050 x 813 mm |Number of tray’s : 47 pieces appx. (more on request) |Dimensions Shuttle W x D x H : 3380 x 2921 x 6450 mm |Power : 3/N/PE400 V , 11 A , 50/60 HZ , 4,9 kVA|Technical details : |- Maximum total capacity of the KARDEX Shuttle XP : 2 x 33400 kg |- Maximum tray capacity : 47 tray’s appx. LIGHT 110 KG & MEDIUM 215 kg each |More tray’s can be ordered. |- Tray dimensions : 3050 x 813 mm |- Machine dimensions : Wide x Depth x Height : 3380 x 2921 x 6450 mm |- Footprint of the system : 9.87 m2 |- Capacity with 47 trays : 116,54 m2 , every tray is appx. : 2,48 m2 |- Electronic volume measuring system in 25 mm screen (grid) |- An access opening with sliding doors to p |
| Technical Specifications: | Length x width x height: - × - × - Weight: - State: good At local norms: --------- Status: dismantled |
