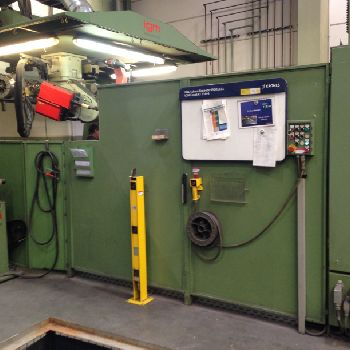

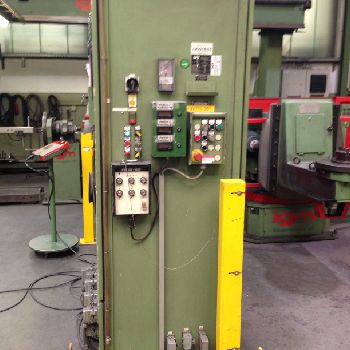

IGM RT 30-BWS Welding Robot
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Welding Machines |
| Manufacturer: | IGM |
| Model: | RT 30-BWS |
| Year of Make: | 1997 |

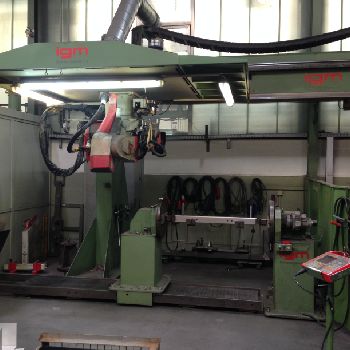

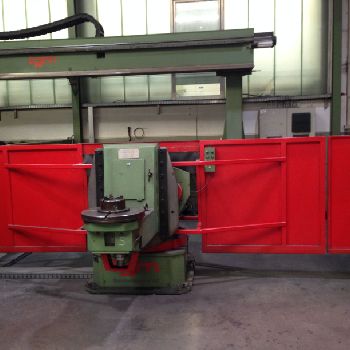

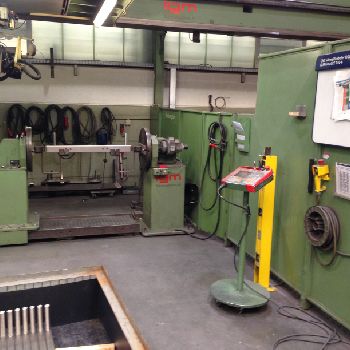

| Description: | Welding Robot Plant Construction model Portal consists of:|robot IGM Klaro: |-working area - straightened length = 9100mm, radius = 1550mm - welding gun turned = 8480mm, radius 1240mm |- throat 2490 mm |- travel of the robots 6000mm , set up speed 0 -60 m /min |- air pressure 6 bar|workpiece manipulator device type RP 300a.1. ( turning device ) |- faceplate: 500 mm; passage hole 59mm; thickness 29mm with t-slot |- capacity 0,7 kW |- revolution per minute 0 - 6 rpm|tailstock type RF 300.1 (revolving)|- 500 mm; passage hole 42 mm |- displacement path 3000mm |- face plate distancemin/max.:1000/4000 mm |Longitudinal track type KLAO-600 ( size : L: 7,05xB:3,2 xH:3,7m) |- beam size length 7000mm |- track column height approx. 2555mm |- column width /center 6400mm |- column dimensions 450x270x3000mm|welding device type TA 500 for welding application MIG / MAG ( Size L: 1,2 x W: 0,6 x H: 1,35 m) |- power consumption 36 A, primary continuous current 25 A, primary continious |
| Technical Specifications: | Length x width x height: 6000.0 mm × 11000.0 mm × 3700.0 mm Weight: 8000.0 kg State: good At local norms: --------- Status: dismantled |
