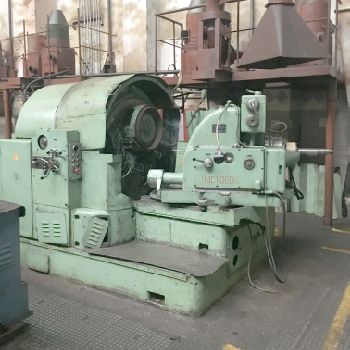

Gear grinding machine for spiral bevel gear set model 5A872
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Russia |
| Category: | Gear Cutting Machines |
| Manufacturer: | Spiral |
| Model: | 5A872 |
| Year of Make: | 1984 |
| Description: | Gear grinding machine for spiral bevel gear set model 5A872 |Manufacturer: STANKO |Condition: perfect, accesories, can inspect under power |- workpiece diameter, mm 800 |- module, mm 16 |- number of teeth 4-100 |- angle of spiral, deg 0-60 |- tooth depth, mm 33 |- width of ring or pinion gear, mm 125 |- cradle roll, deg 0-60 |- diameter of grinding wheels, mm 160; 250; 315; 450 |- spindle speed, RPM 955-4140 |- machine dimensions (LWH), mm 3320x2100x2000 |- machine weight, kg 12500 |
| Technical Specifications: | Max wheel Ø: 800.0 mm Module +: 16.0 Max. gear width: 125.0 mm Max. spindle speed: 4140 rpm Motor power: 5.5 kW Length x width x height: 3320.0 mm × 2100.0 mm × 2000.0 mm Weight: 12500.0 kg State: good At local norms: yes Status: under power |
