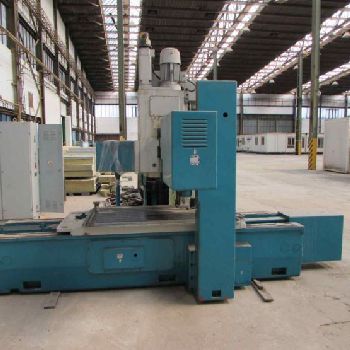

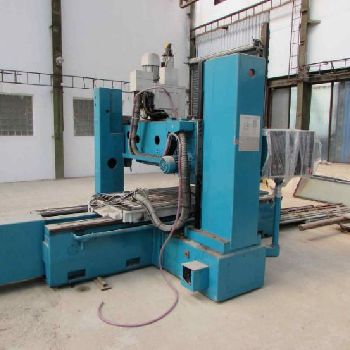

Kovosvit VR 5 NC Multispindle drilling machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Czechia |
| Category: | Drilling Machines |
| Manufacturer: | KOVOSVIT MAS |
| Model: | VR 5 NC |
| Year of Make: | 1997 |
| Description: | The largest drilling diameter in steel |strength 588 MPa mm 50 |Maximum boring diameter mm 150 |The maximum distance between racks mm 1600 |Maximum spindle end distance from table mm 1030 |Table clamping area mm 1000 x 1600 |Table longitudinal adjustment mm 1370 |Spindle Headstock Adjustment mm 1000 |Vertical adjustment of cross member mm 875 |Spindle taper ISO 40 |Spindle stroke mm 285|Spindle speed |number of steps 16 |range min-1 28 - 2500 |Total power consumption kVA 12.5 |Engine power kW 4|Machine dimensions: length x width x height mm 4405 x 3145 x 3350 |Machine weight kg 8810 |
| Technical Specifications: | Drilling Ø: 150.0 mm Table length: 1600.0 mm Table width: 1000.0 mm Spindle taper: ISO 40 Throat: 1000.0 mm Power: 4.0 kW Arm length: 1000.0 mm Length x width x height: 4405.0 mm × 3145.0 mm × 3350.0 mm Weight: 8810.0 kg State: good At local norms: --------- |
