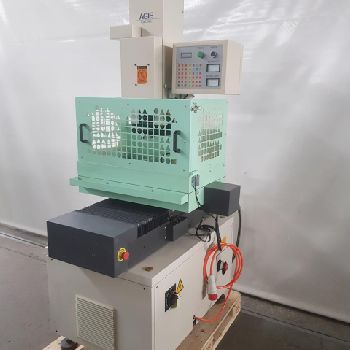

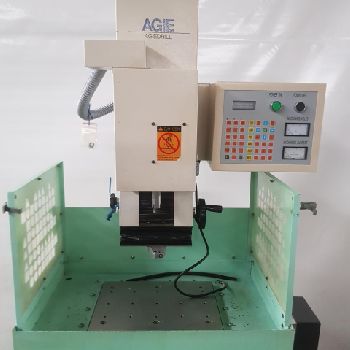

AGIE AGIEDRILL Die sinking edm machine
$ 15,957
| Type: | Buy-It-Now |
| Location: | Switzerland |
| Category: | Die-Sinking EDM Machines |
| Manufacturer: | Agie |
| Model: | AGIEDRILL |
| Year of Make: | 2005 |

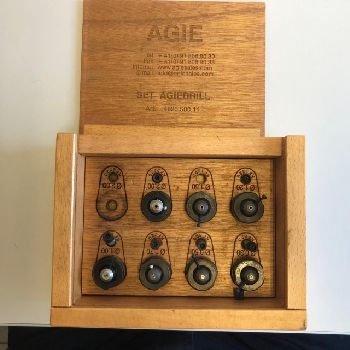

| Description: | Dimensions of the working tank: |Length 750 mm |Width 490 mm |Height 210 mm |Table load max. 300 kg |Longitudinal traverse (X-axis) 300 mm |Cross traverse (Y-axis) 200 mm |Vertical travel (Z axis) 300 mm |Working table: |Length 300 mm |Width 400 mm |Drill capacity: |from 0.3 mm |up to 3 mm |Bore 200 mm |Impulse capacity 5.7 A |Voltage 50 Hz 3x 400 Volt |Total power required 4 kVA |Total power required 4 kW |Set of electrode holders |
| Technical Specifications: | X Axis: 300.0 mm Y Axis: 200.0 mm Z Axis: 300.0 mm Worktank length: 750.0 mm Worktank width: 490.0 mm Worktank height: 210.0 mm Table length: 400.0 mm Table width: 300.0 mm Max. workpiece weight: 910.0 kg Max. machining current: 5.7 A Length x width x height: 900.0 mm × 1340.0 mm × 1940.0 mm Weight: 910.0 kg State: good At local norms: yes Status: visible |
