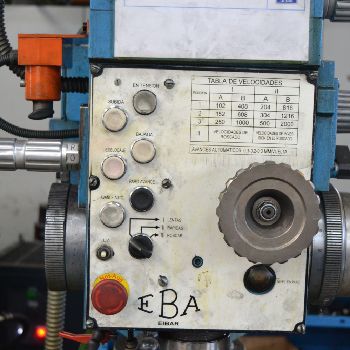

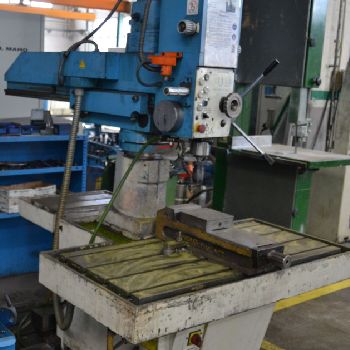

EBA Radial drilling machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Spain |
| Category: | Radial Drilling Machines |
| Manufacturer: | EBA |
| Model: | - |
| Description: | Table: 1300 x 650 mm |Cone: MK4 |Working capacity: 32 mm |Threading capacity: M30 |Spindle stroke: 150 mm |Stroke of the column: 1640 mm |Minimum radius: 230 mm |Maximum radius: 1030 mm |Spin on column: 360 |Speeds: 12, from 102 to 2000 r.p.m. |Blockage: hydraulic |Motor power: 10 HP |Weight: 1570 kgs.|Equipped with:|Rear table at 600 x 400 mm |Rear table slotted 1050 x 510 mm |EC regulations |
| Technical Specifications: | Drilling Ø: 32.0 mm Table length: 1300.0 mm Table width: 650.0 mm Spindle speed: 2000 rpm Spindle taper: MK4 Head traverse: 1640.0 mm Power: 7.5 kW Arm length: 1030.0 mm Length x width x height: - × - × - Weight: 1570.0 kg State: good At local norms: yes |
