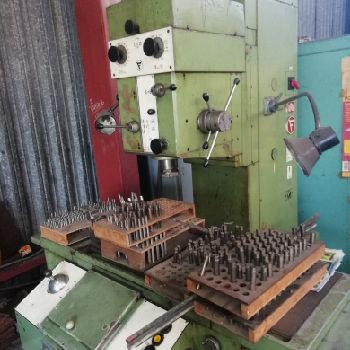

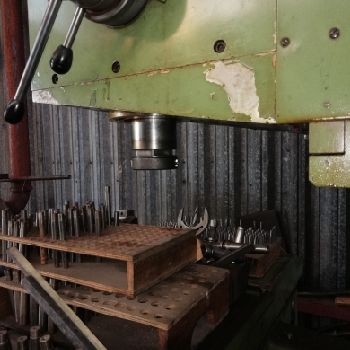

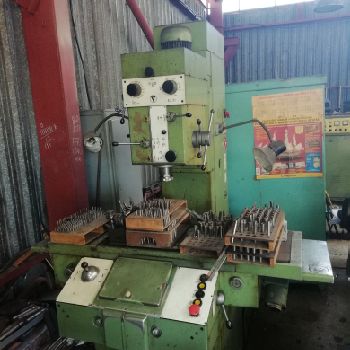

Veb Mikromat Dresden Germany BKoE 400x630 Jig boring machine
$ 7,751
| Type: | Buy-It-Now |
| Location: | Ukraine |
| Category: | Jig Boring Machines |
| Manufacturer: | VEB Mikromat |
| Model: | BKoE 400x630 |
| Year of Make: | 1984 |
| Description: | Machine coordinate and boring BKOE 400x630 |Sizes of a working surface of a table, mm: |Width 400 |Length 630 |Number of T-slots, pcs. |Groove width, mm 107 |The distance between the grooves, mm 63 |Moving the desktop: |longitudinal, mm 400 |transverse, mm 250 |Vertical movement of the spindle head, mm 420 |The distance from the spindle nose to the working surface of the table: |smallest, mm 50 |most mm 570 |The greatest course of the boring spindle, mm 100 |The distance between the coating guide on the rack and the axis of the boring spindle, mm 365 |The end of the spindle according to GOST 24644-81 30 |The largest diameter of boring, mm 100 |The accuracy of the reference coordinates along the axes x and y, mm 0,001 |Accuracy of installation of coordinates, mm 0,002 |The largest diameter of a mill when milling, mm 80 |Total power consumption, kW 2.0 |Maximum mass of the workpiece, kg 125 |Machine weight, kg 2200 |Height of the machine, mm 2330 |Length of the m |
| Technical Specifications: | X Axis: 400.0 mm Y Axis: 250.0 mm Z Axis: 420.0 mm Table length: 630.0 mm Table width: 400.0 mm Piece weight: 125.0 kg Spindle diameter: 100.0 mm Spindle motor power: 2.0 kW Length x width x height: 2190.0 mm × 1870.0 mm × 2330.0 mm Weight: 2200.0 kg State: good At local norms: --------- Status: under power |
