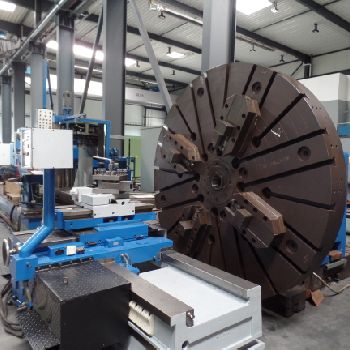

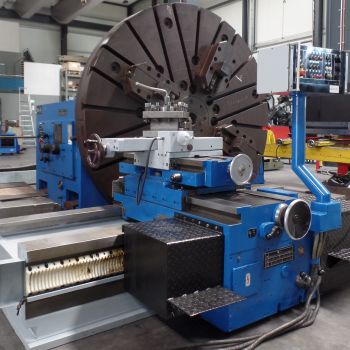

WMW DP3 Facing lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Facing Lathes |
| Manufacturer: | Magdeburg |
| Model: | DP3 |
| Year of Make: | 1979 |

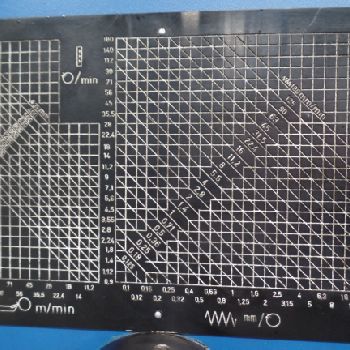

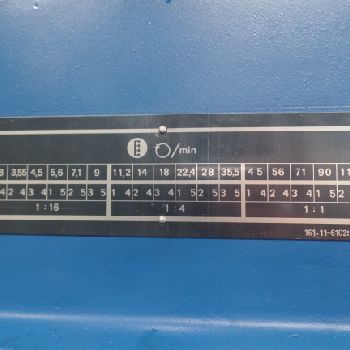

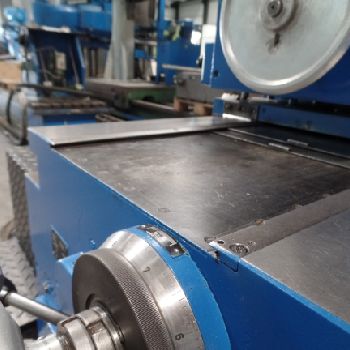

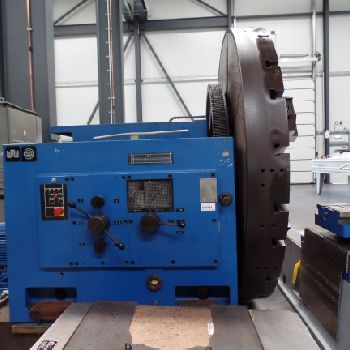

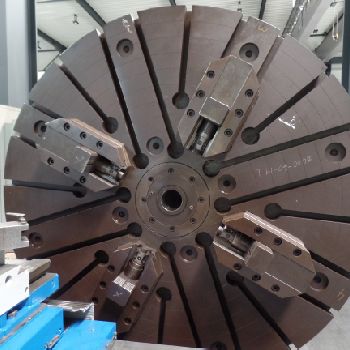

| Description: | Application possibilities: |- of disk-shaped and annular, bulky and large-scale workpieces|equipped: |spindle box clockwise and counter clockwise |column support with bed slide, chisel holder with 4 time clamper , upper - cross tranverse and bed slide|further features: |- transverse slide 750mm |- cross slide 630mm |- upper slide 180mm |- bed slide 1200mm |- swing diameter over foundation plates 2480mm |- max. clamping diameter with external clamping / with internal clamping:250-2300/550-2500mm |- thread cutting metric and inch |with 3 clamping base plates|Technical Details: |faceplate diameter: 2500 mm |turning length: variable |centre height: 1250 mm |spindle bore of work spindle: 100 mm |range of revolution per miute: 2,8 ... 140 U/min |faceplate rpm: 18 |feed range: 0,18 ... 63 / 18 steps mm/min |rapid traverse longitudinal and cross: 5000 mm/min |control voltage: 220 V / 50 Hz |total power requirement aprox.: 55 kW |weight of the machine aprox.: 29 t |
| Technical Specifications: | CNC: No Faceplate diameter: 2500.0 mm Spindle bore: 100.0 mm Turning speed: 140 rpm Length x width x height: - × - × - Weight: 29000.0 kg State: in working conditions At local norms: --------- Status: under power |
