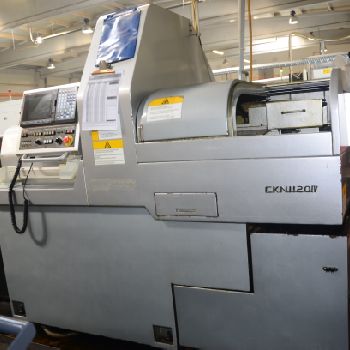

CKN1120 IV Swiss Type Lathe + bar feeder
$ 26,042
| Type: | Buy-It-Now |
| Location: | Hungary |
| Category: | CNC Lathes |
| Manufacturer: | NINGJIANG |
| Model: | CKN1120 IV |
| Year of Make: | 2011 |

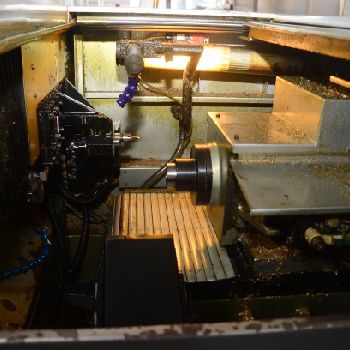

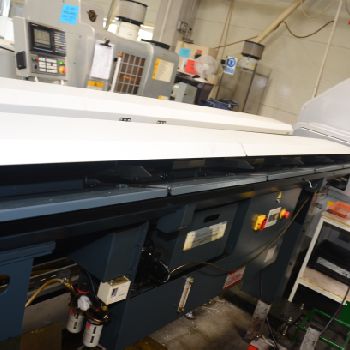

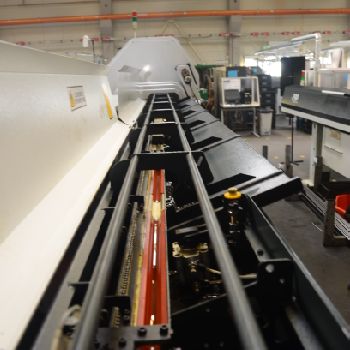

| Description: | two same type of machine for sale!!!|Both machines are for on sale with bar feeder!!!|Integrated machine base to ensure rigidity and stability |Built in spindle motor for both main/sub spindle. High precision ball bearing. Cs axis control and indexing. |Impact structure with low vibration and noise |Gang tool slide with movable headstock. Rotary guide-bush/Fixed guide bush for supporting during cutting. |AC servo control for X, YZAaxis.4 axis could be simultaneously controlled. Built-in absolute encoder. High precision linear guide and ball screw featuring high positioning accuracy and rapid travel speed. |FANUC 0i -TD control system with LCD display and MPG control. Self-diagnosis is available. |Full closed cover with tempered glass observing window for machining zone. |Emergency stop button to stop the machine whenever necessary |Inter-lock device for spindle and spindle collet. |Override protection for XYZAslide and overload protection for XYZA servo motor and cooling motor |
| Technical Specifications: | Max. Ø: 20.0 mm Max. length: 200.0 mm Nbr of axes: 4.0 Spindle speed: 8000 rpm Spindle power: 3.7 kW Length x width x height: 2150.0 mm × 1270.0 mm × 1805.0 mm Weight: 2300.0 kg State: good At local norms: --------- Status: in production |
