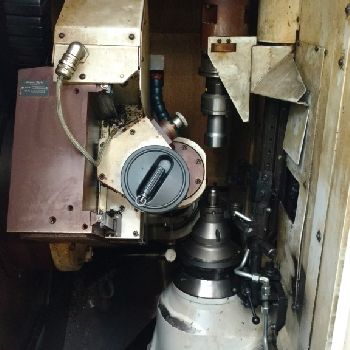

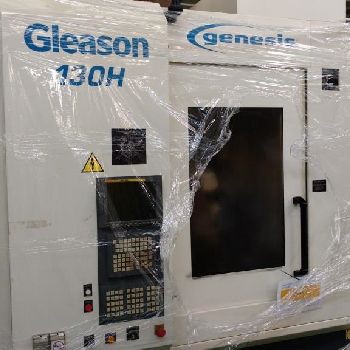

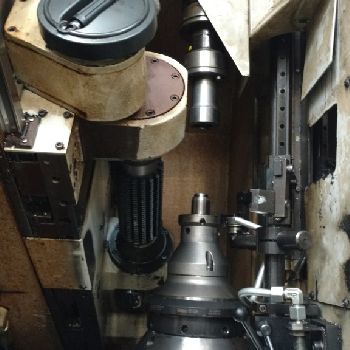

Gleason Genesis 130H Cnc gear hobbing machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | France |
| Category: | Hobbing Machines |
| Manufacturer: | Genesis |
| Model: | Genesis 130H |
| Year of Make: | 2008 |

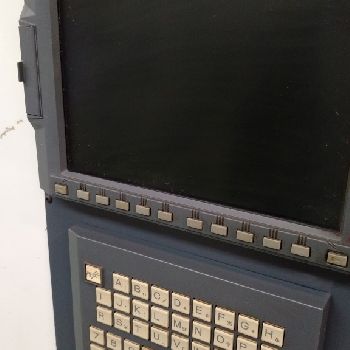

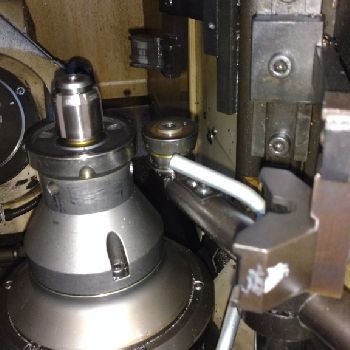

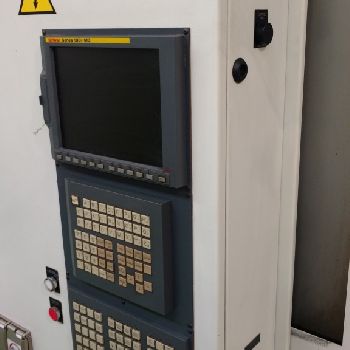

| Description: | Control: FANUC 18.Oi 6 axis controlled |Maximum part diameter: 130 mm |Axial slide travel max: 350 mm |Maximum modul: 3 |Hob speed range: 10 to 4000 rpm |Hob head swivel: +/- 45 |Hob spindle power: 11.5 Kw |Hob Shift travel: 220 mm |Hob dimension max: 100 x 240 mm |Hobbing process for wet cutting |Attachment: ISO 30 |Hydraulic workpiece clamping |2 cut work cycle |2 Strategies for shifting: crown or tapper hobbing |Automation 20 stations loader conveyor |Tailstock |Chip conveyor |Dimensions Lx Wx H = 2220 x 2600 x 2880 mm without automation |Weight of machine: 9.000 kg |Made in USA - No CE mark |
| Technical Specifications: | Max wheel Gear Ø: 130.0 mm Module +: 3.0 CNC type: FANUC 18.Oi Max spindle speed: 4000 rpm Motor power: 11.5 kW Length x width x height: 2200.0 mm × 2600.0 mm × 2880.0 mm Weight: 9000.0 kg State: excellent At local norms: --------- Status: under power |
