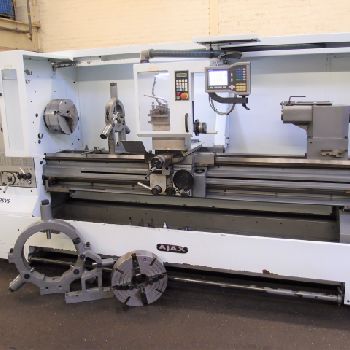

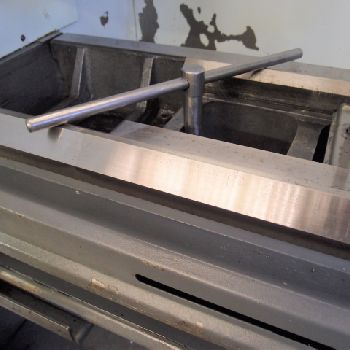

Ajax AJL 325 VS lathe
$ 18,829
| Type: | Buy-It-Now |
| Location: | United Kingdom |
| Category: | Lathes |
| Manufacturer: | Ajax |
| Model: | AJL 325 VS |
| Year of Make: | 2014 |

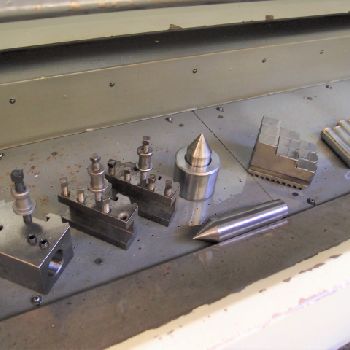

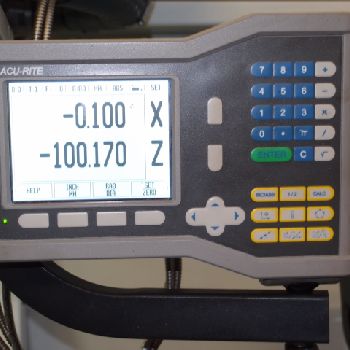

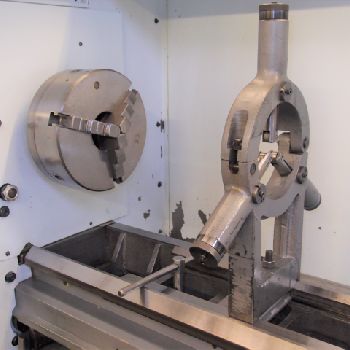

| Description: | AJAX VARIABLE SPEED GAP BED CENTRE LATHE|Model AJL325 VS x 2000 mm |Year 2014|CAPACITY |Distance between centres 2000 mm |Swing over bed 652 mm |Swing over cross slide 450 mm |Swing in gap 910 mm |Width of bed 350 mm|HEADSTOCK |Spindle speeds (3 ranges, infinitely variable) 40 - 1780 rpm |Main motor 7.5 kW |Spindle nose A2-8 |Bore through spindle 80mm|UNIVERSAL GEARBOX |Longitudinal feeds per rev (55) 0.05 1.5 mm/rev |Cross feeds (55) 0.025 0.752 mm/rev |Metric threads (55) 0.5 15 mm |Threads per inch (55) 60 2 tpi |Module threads (55) 0.25 7.5 |D.P. threads (55) 120 - 4|TAILSTOCK |Spindle diameter 95 mm |Spindle travel 220mm |Taper of centre No. 5 Morse|Machine complete with :- |ACU-RITE Digital read out, Metric dials, Quick change toolpost with holders, 315mm 3-jaw chuck, 400mm 4-jaw chuck, 10-180mm 3 point roller steady, 180-400mm 3 point roller steady, 2 point roller steady, Interlocked chuck guard and travelling zone guard, Coolant and low volt light. |
| Technical Specifications: | Length between centers: 2000.0 mm Center height: 325.0 mm Turning length: 2000.0 mm Turning Ø: 652.0 mm Ø above the bed: 652.0 mm Ø above transversing slide: 450.0 mm Diameter in the gap: 910.0 mm Spindle nose: A2-8 Spindle bore: 80.0 mm Turning speed: 1780 rpm Spindle motor power: 7.5 kW Overhauled: no Length x width x height: 3800.0 mm × 1000.0 mm × - Weight: 2600.0 kg State: excellent At local norms: --------- Status: under power |
