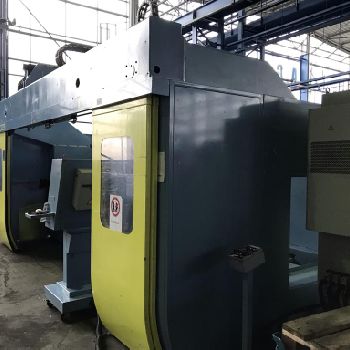

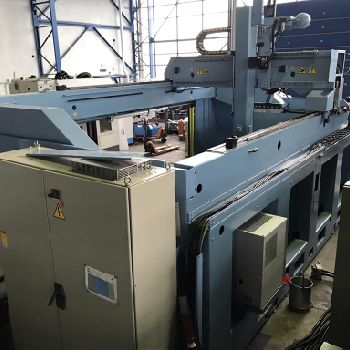

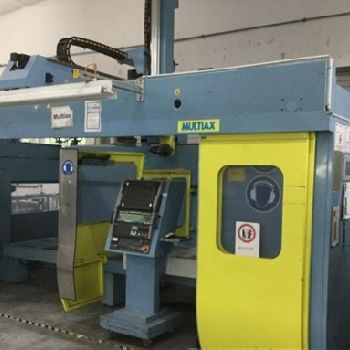

Multiax T 2708 T 0115-3615 5-Axis CNC Portal Machining Center / Portal Milling Machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Gantry Type Milling Machines |
| Manufacturer: | Multiax |
| Model: | T 0115-3615 |
| Year of Make: | 2007 |

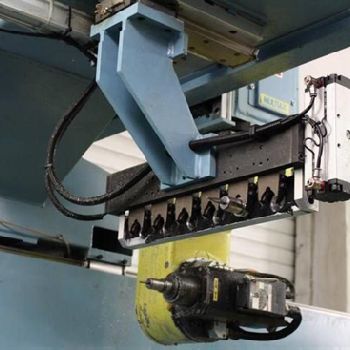

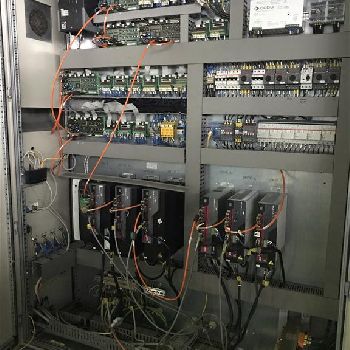

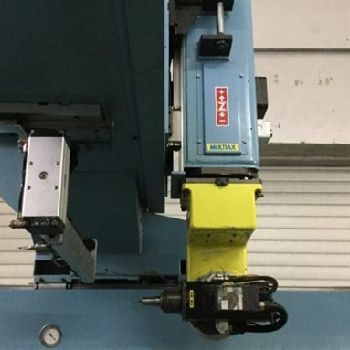

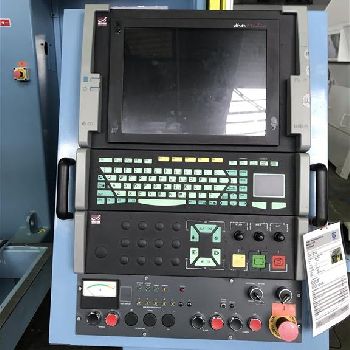

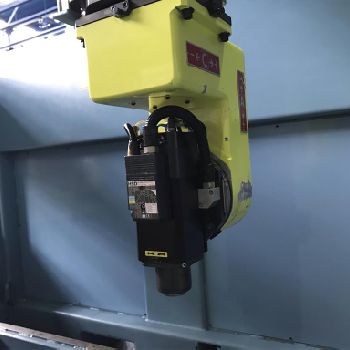

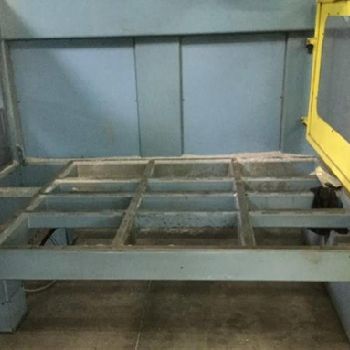

| Description: | - spindle HSK-ES779F63F (capacity: 10 to 16.2 kW) |- vacuum pump Ritschle |- IKZ in spindle |- tool magazine type linear memory |- work table is divided into 2 work areas|The machine can be demonstrated under power.|technical details |- x-axis: 3600 mm |- y-axis: 1800 mm |- z-axis: 1200 mm |- c-axis: 365 |- spindle head swivable left - right: +/- 120 (a-axis) |- control: OSAI 10/510 OS wire Winmedia |- number of spindle speeds: ...40 000 rpm |- feed:: x / y-axis: 84 m/min |- feed:: z-axis: 40 m/min |- feed:: a / c-axis: 30 m/min |- tool changer with: 6 tools |- tool clamping: HSK-bevel/cone DIN 69893 |- interface: RS 232 + LAN-Connection |- table-size: 3600 x 1550 mm |- air-pressure connection: 4 - 6 bar |- total power requirement: 30,0 kW |- weight of the machine: approx. 8,3 t |- dimensions of machine: L: 7,8 x W: 3,4 x H: 2,62 m |- dimensions electric cabinet LxWxH: 1,85 x 0,53 x 2,1 m |
| Technical Specifications: | X axis: 3600.0 mm Y axis: 1800.0 mm Z axis: 1200.0 mm CNC: Yes Table length: 3600.0 mm Table width: 1550.0 mm Spindle taper: HSK-Kegel DIN 69893 Max. spindle speed: 40000 rpm Spindle motor power: 16.0 kW Length x width x height: 7800.0 mm × 3400.0 mm × 2620.0 mm Weight: 8300.0 kg State: in working conditions At local norms: yes Status: under power |
