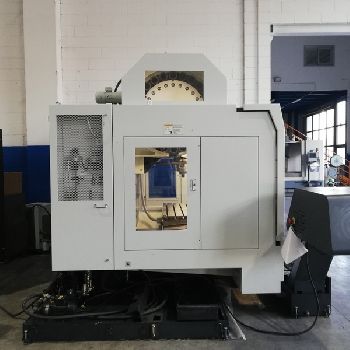

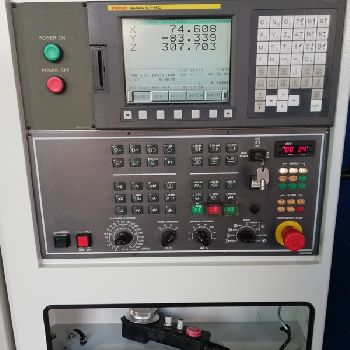

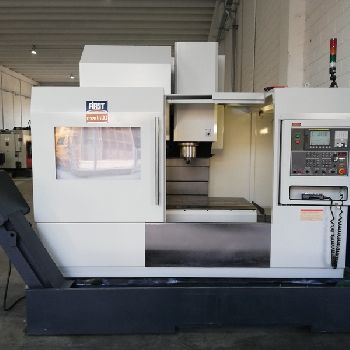

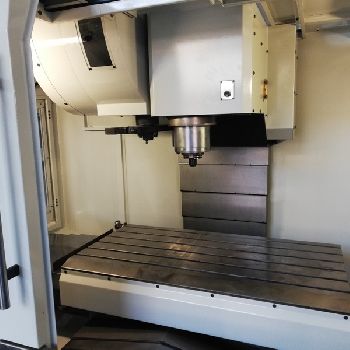

Used FIRST MCV 1100 Machining center - vertical
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Italy |
| Category: | Vertical Machining Centers |
| Manufacturer: | FIRST |
| Model: | MCV 1100 |
| Year of Make: | 2008 |
| Description: | Table dimensions 1300 x 600 mm |Allowable weight on table 1100 kg |Spindle nose - table distance 660 mm |Axis travel x 1100 mm |Y axis travel 600 mm |Z axis travel 560 mm |Rapid axis x m / min 20 |Fast axis y m / min 20 |Rapid z-axis m / min 15 |Axis work progress x mm / min 1-10000 |6000 rpm spindle speed |Spindle motor power (cont / 30 min) kw 7.5 / 10 |Tool positions n 24 |Spindle iso 50 attachment |Tool max placed next occupied 110 mm |Tool max placed next to free 127 mm |Max tool length 350 mm |Max tool weight 15 kg |Machine dimensions 2600 x 2900 x 2900 mm |Machine weight 7700 kg |Chip conveyor yes |High pressure in the center of the spindle |Flat guides |Mechanical range change|Cnc fanuc |
| Technical Specifications: | Axis X: 1100.0 mm Axis Y: 600.0 mm Axis Z: 560.0 mm Rotary table (4th axis): no Type of CNC: Fanuc Table length: 1300.0 mm Table width: 600.0 mm Max. part weight: 1100.0 kg Number of tool pockets: 24.0 Spindle taper: ISO 50 Max. spindle speed: 6000 rpm Spindle motor power: 10.0 kW Length x width x height: 2600.0 mm × 2900.0 mm × 2900.0 mm Weight: 7700.0 kg State: good At local norms: yes Status: visible |
