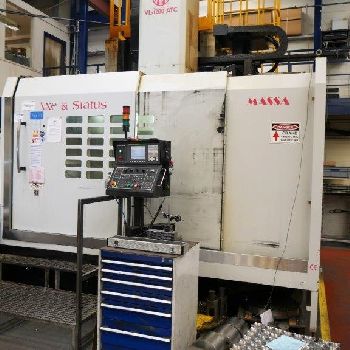

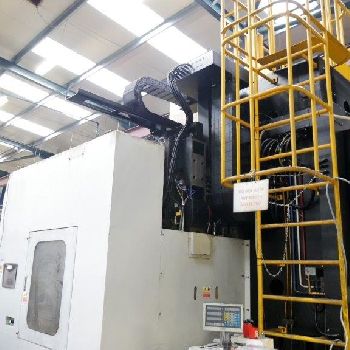

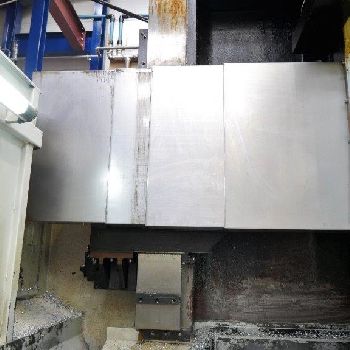

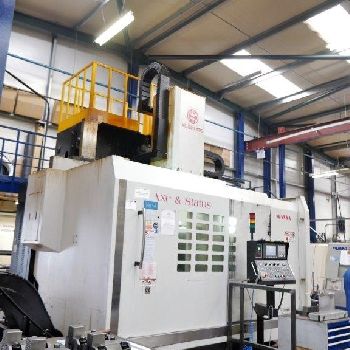

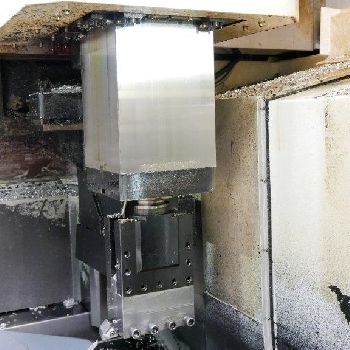

Massa VL-1200 ATC vertical turret lathe with cnc
$ 103,549
| Type: | Buy-It-Now |
| Location: | United Kingdom |
| Category: | Vertical Turret Lathes |
| Manufacturer: | ATC |
| Model: | VL-1200 ATC |
| Year of Make: | 2011 |

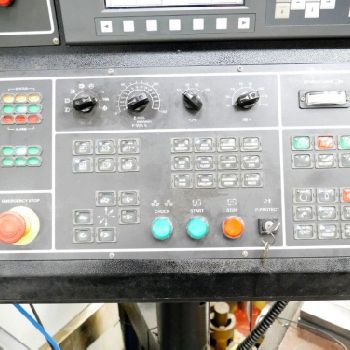

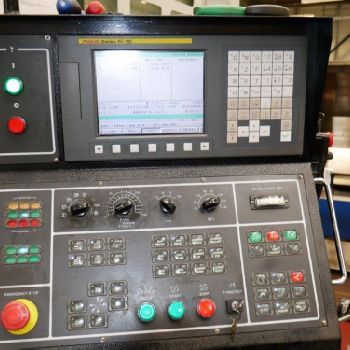

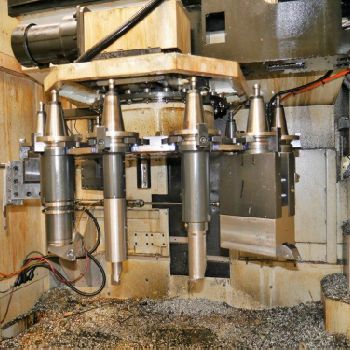

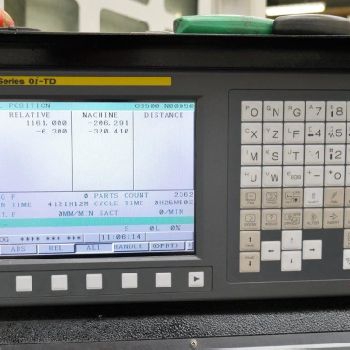

| Description: | Massa VL-1200 ATC Vertical CNC Borer. With Fanuc Oi-TD Control. Table 1250mm dia |Year of Manufacture 2011 |Control Fanuc series O i-TD |Table Size 1250mm |Table Load 5000 kgs |Maximum Swing Diameter 1600mm |Maximum Turning Diameter 1350mm |Maximum Turning Height 1250mm |X, Axis Travel 1475mm |Z, Axis Travel 900mm |Vertical Travel of Crossrail 800mm |X, Axis Rapid Feed Rate 1200 mm/min |Z, Axis Rapid Feed Rate 1000 mm/min |Cutting Feed Rate 0.01-50 mm/rev |Manual Feed Rate 0-1260 mm/min |Turrent (ATC) Type 12 station |Type of Tool Shank BT 50 |Max. Tool Weight 50kg |Max. Loading of ATC 360kg |Tool Changer Time 30 sec |Input 400/ 3 / 50hz 160amps 80kw |Fitted with 4 Jaw manual chuck, coolant, chip conveyor |Length 4,100 mm |Width 3,600 mm |Height 4,000 mm |Nett Weight Approx. 32,000kg |
| Technical Specifications: | Plate diameter: 1250.0 mm Working height: 1250.0 mm CNC type: Fanuc series O i-TD Max piece weight: 5000.0 kg Motor power: 80.0 kW Overhauled: no Length x width x height: 4100.0 mm × 3600.0 mm × 4000.0 mm Weight: 32000.0 kg State: good At local norms: --------- |
