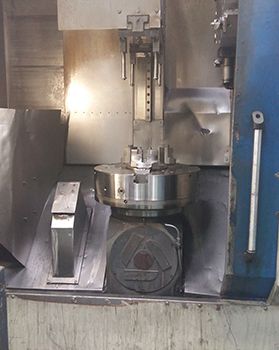

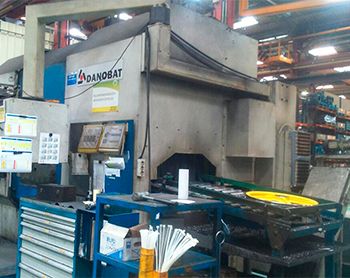

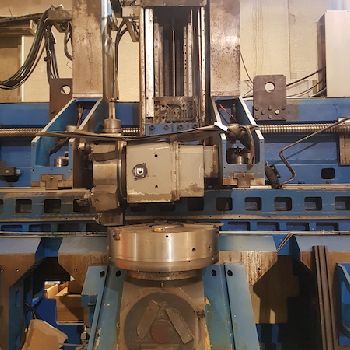

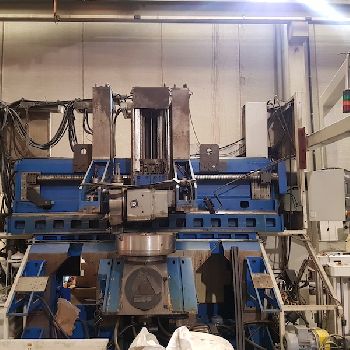

Danobat TV650 vertical turret lathe with cnc
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Spain |
| Category: | Vertical Turret Lathes |
| Manufacturer: | Danobat |
| Model: | TV650 |

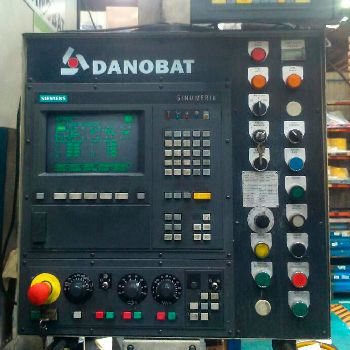

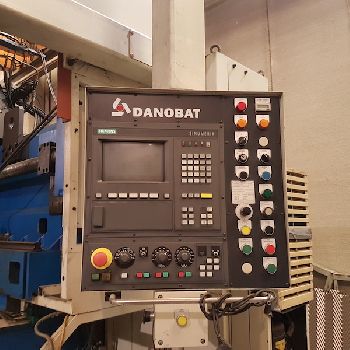

| Description: | used Danobat CNC vertical lathe TV-650 model with CNC Siemens |CNC Siemens 810T |Height of the nose to the ground: 1185 mm |Diameter of the workpiece: 650 mm |Diameter above the bed: 800 mm |Maximum plate diameter: 630 mm |Inner diameter of the front bearing: 200 mm |Stepless spindle speed: 1600 rpm |Main shaft nose: ASA-15 |Sealing: Labyrinth Mecnic |Maximum torque (100%): 3500 Nm |Maximum torque (40%): 4700 Nm |Fast feedrate of X-axis: 20000 mm / min |Fast feedrate of Z-axis: 20000 mm / min |X axis travel: 1221 mm |Z-axis travel: 635 mm |Position control of X-axis: Encoder |Position control of Z-axis: Encoder |Number of positions: 6 |Toolholder: VDI-3425 |Maximum diameter of tools on telescopic: 1100 mm |Main spindle: 60 kW |X-axis: 37 Nm |Z-axis: 27 Nm |Thrust force of X-axis: 11625 N |Thrust force Z-axis: 16950 N |Total installed power: 135 kW |Machine dimensions: 4315 x 2400 x 3850 mm |Weight: 14,500 kg |
| Technical Specifications: | Plate diameter: 630.0 mm Working height: 1185.0 mm CNC type: Siemens 810T Rotation speed: 1600 rpm Motor power: 60.0 kW Overhauled: no Length x width x height: 4315.0 mm × 2400.0 mm × 3850.0 mm Weight: 14500.0 kg State: revised At local norms: --------- Status: under power |
