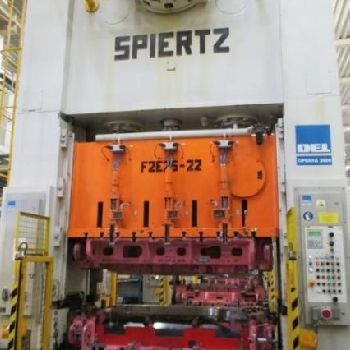

Spiertz F2E 25X2,2 metal press
$ 71,994
| Type: | Buy-It-Now |
| Location: | Czechia |
| Category: | Hydraulic Presses |
| Manufacturer: | Spiertz |
| Model: | F2E 25X2,2 |
| Year of Make: | 2001 |

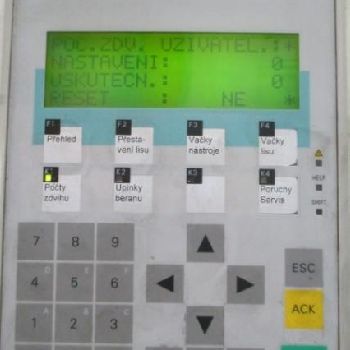

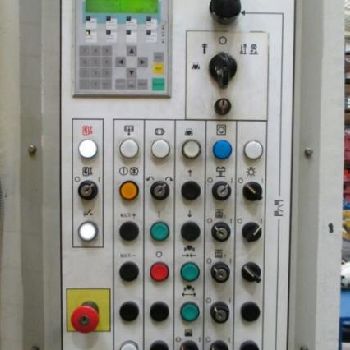

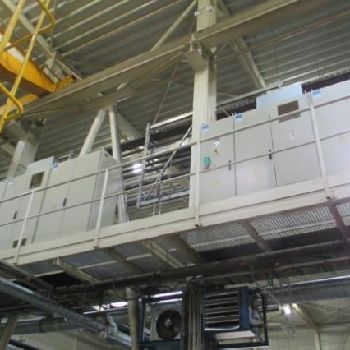

| Description: | The machine is in good tech.stav, after agreement the possibility of a tour in progress. Nominal forming force of the press: 250 t Work table area dimensions: 2 200 X 1 200 mm Ram stroke: 460 mm Number of strokes: 15/30 / min Clamping height: 1 000 mm Ram adjustment: 3 00 mm Main motor power: 75 kW Max . Weight of the tool: 62,000 kg Drawing retainer - stroke 210 mm, power 420 kN Control: PLC S7 300 Panel Siemens MPI OP7 Basic dimensions of the press: Height above the floor approx. 7000 mm Under the floor approx. 1650 mm Width approx. 4500 mm Depth approx. 3500 mm Part of the press Is a timing box. These are stored on the balcony above the press. |
| Technical Specifications: | Power in tons: 250 T Table length: 2200.0 mm Table width: 1200.0 mm Type: Hydraulic Ram stroke: 460.0 mm Nbr of strokes/min: 30.0 Motor power: 75.0 kW Length x width x height: 4500.0 mm × 3500.0 mm × 7000.0 mm Weight: - State: good At local norms: --------- Status: visible |
