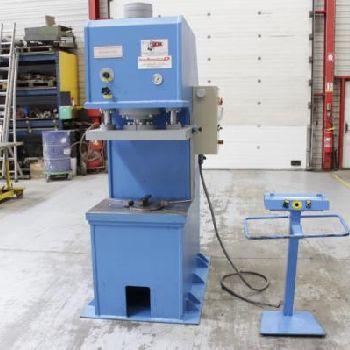

SICMI PCL70 metal press
$ 19,386
| Type: | Buy-It-Now |
| Location: | France |
| Category: | Hydraulic Presses |
| Manufacturer: | SICMI |
| Model: | PCL70 |
| Year of Make: | 2005 |

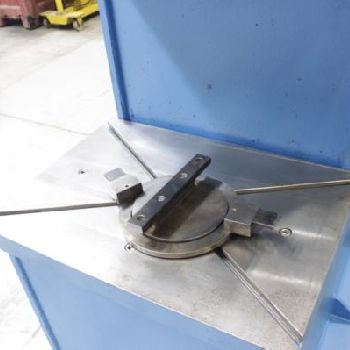

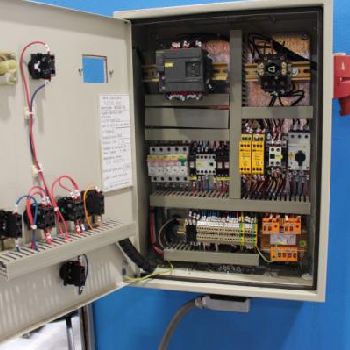

| Description: | PCL Hydraulic Gooseneck Hydraulic Press|Features: upper table with 2 lateral guides, fixed lower table bolted.|Use: stamping, folding and assembly.|Orders:|-SEMIAUTOMATIC Bimanual control by LEVER and BUTTON, stop / descent microns.|-AUTOMATIC Bimanual control by DOUBLE BUTTONS, microns of abutment up / down, raising of the automatic table, SIEMENS PLC, group REXROTH solenoid valves or EATON.|Accessories: sheet metal clamp, heat exchanger, pressure switch, digital readout of odds and times, decompression, parts counting |technical characteristics |Power 70 T |Height 2500 mm |Length 1500 mm |Width 1000 mm |Distance cylinder-gooseneck 250 mm |Table height 800 mm |Tray passage - table 500 mm |500 mm tray stroke |Dimensions of the tray 700 x 350 mm |Table dimensions 700 x 500 mm |Approach speed 24 mm / sec |Working speed 5 mm / sec |Motor power 4 kW |Weight 2100 kg |
| Technical Specifications: | Power in tons: 70 T Table length: 700.0 mm Table width: 500.0 mm Type: Hydraulic Ram stroke: 500.0 mm Motor power: 4.0 kW Length x width x height: 1500.0 mm × 1000.0 mm × 2500.0 mm Weight: 2100.0 kg State: good At local norms: --------- Status: visible |
