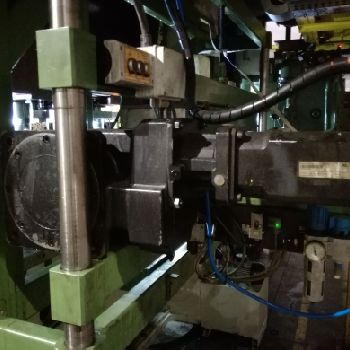

SMG DS315 1500/1300 metal press
$ 127,442
| Type: | Buy-It-Now |
| Location: | Poland |
| Category: | Hydraulic Presses |
| Manufacturer: | SMG |
| Model: | DS315 1500/1300 |
| Year of Make: | 1984 |

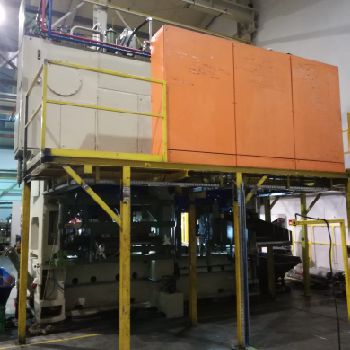

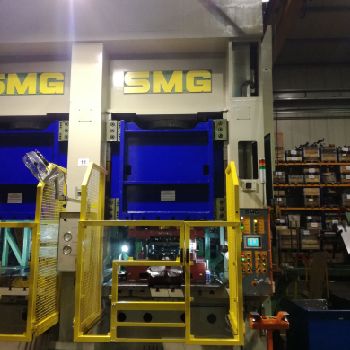

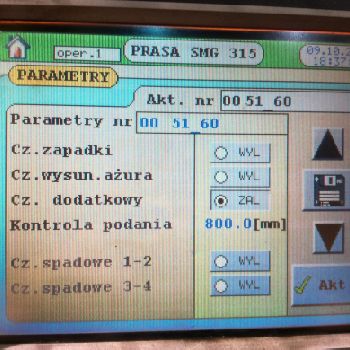

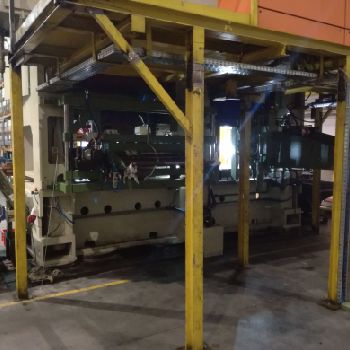

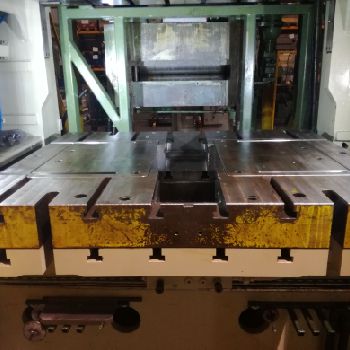

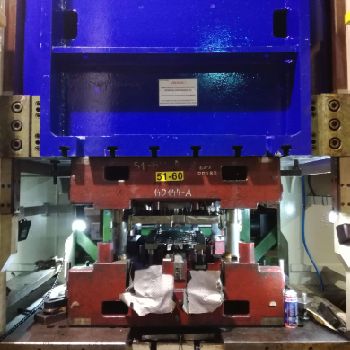

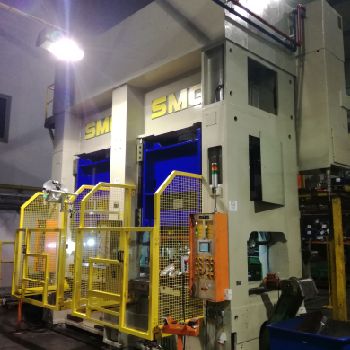

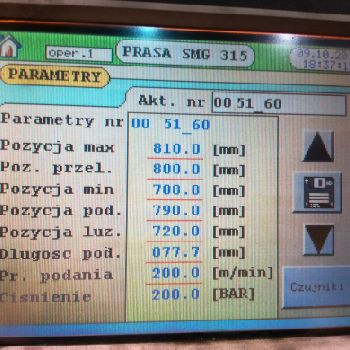

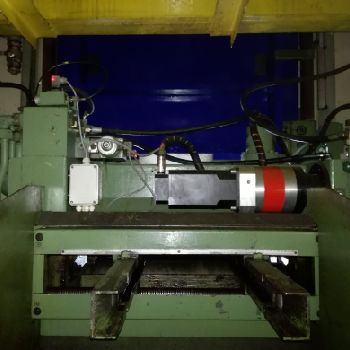

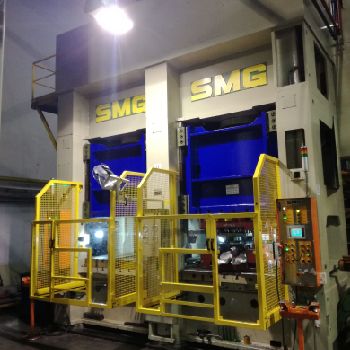

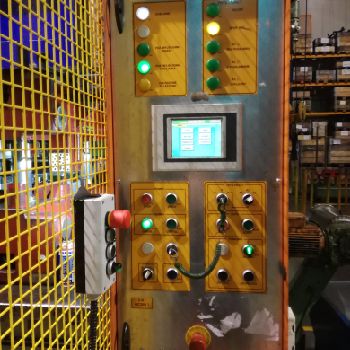

| Description: | smg (pressen) |a hydraulic press |year of production: 1984 |type: ds315- 1500/1300 |pressure of 315 tons |dimensions of the working table 1500 x 1300mm |opening the machine (upper point of the machine) -750mm |machine bottom point 440mm | The machine is equipped with CNC control where we can determine all the pressing parameters. | The machine is in continuous use, works with the entire line for unwinding and straightening the sheet. | The press works in manual, semi-automatic and automatic mode. | It has sensors to control the application and drop of details. | Machine equipped with safety cages and a sheet feeder. |The purchase of work includes two stitches (positions can not be separated).|The presses are equipped with two different sheet feeders: hydraulic and pneumatic.|Sheet feeder data: |Hydraulic control |The width of the sheet: 600 mm |Sheet thickness: 1-6 mm |The feeding rollers are driven by a servo drive where you can set a very accurate stroke of 0.1mm.|Sh |
| Technical Specifications: | Power in tons: 315 T Table length: 1300.0 mm Table width: 1500.0 mm Type: Hydraulic Ram stroke: 310.0 mm Nbr of strokes/min: 35.0 Distance between columns: 2500.0 mm Motor power: 40.0 kW Length x width x height: 5700.0 mm × 5100.0 mm × 5600.0 mm Weight: 66.0 kg Worked hours: 84700 hours Hours under power: 175200 hours State: good At local norms: --------- Status: in production |
