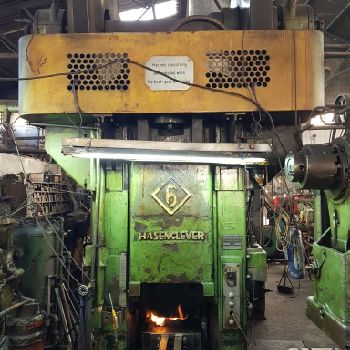

Hasenclever FPRN 300 Friction (Screw) press
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Israel |
| Category: | Forging Machines |
| Manufacturer: | Hasenclever |
| Model: | FPRN 300 |
| Description: | Hasenclever FPRN 300 Friction (Screw) press|The machine is plugged in electricity and in working condition. |Payment terms are EXW and as is. |Selling due to renewal of production lines |nominal force: 0315 t |stroke: 300 mm |number of strokes: 36 /min |distance between columns: 540 mm |distance table/ram, max. stroke up, adjustment up: 750 mm |table surface area: 530 x 630 mm |blow die to die: 630 t |Allowed max. force: 500 t |ram surface: 450 x 560 mm |spindle diameter: 180 mm |power capacity: 18,0 kW |weight: 13,0 t |Dimensions (WxDxH): 2,5 x 2,0 x 4,0 m |
| Technical Specifications: | Table length: 630.0 mm Table width: 530.0 mm Ram stroke: 300.0 mm Nbr of strokes/min: 36.0 Screw diameter: 180.0 mm Motor power: 18.0 kW Length x width x height: - × 2500.0 mm × 4000.0 mm Weight: 13000.0 kg State: good At local norms: --------- Status: visible |
