Maneurop GM80-4ET / DELTA Technics MCL-72E / KÜBA SGBE 33 Cold Storage Plant





REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Freezer Rooms |
| Manufacturer: | Maneurop |
| Model: | GM80-4ET |
| Year of Make: | 2002 |

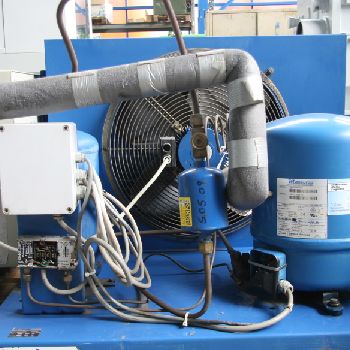

| Description: | Cold Storage Plant with wall thickness of 80mm |- thermal insulation PU Foam, accurate dimensions and foamed without Chlorofluorocarbon / CFC |- thermal conductivity group 025 according DIN 4108 |- K results 0,25 W/m (Kelvin)|equipment: |- 2x vaporizer: 1x manufacturer: DELTA Technics / Typ: MCL-72E / Serial-Nr. 1000 |1x manufacturer: KBA / Typ: SGBE 33 / Serial-Nr. 2015.33 |- 2x thermostatic expansion valves |- 1x coolant aggregate: |manufacturer: Maneurop (France) / type: GM80-4ET / Serial-No: 81424 |refrigerant: R404a / current: 380V - 50Hz |compressor type: MT81HP4AVE / Serial-Nr. NJ103638199 |- electric cabinet |- internal illumination|A installation and dismantling of the cold storage is various times possible. |The cold storage is momentarily stored dismantled. |
| Technical Specifications: | Temperature Min: -5 ° Temperature max: 12 ° Length x width x height: 14300.0 mm × 4400.0 mm × 3600.0 mm Weight: - State: in working conditions At local norms: --------- Status: dismantled |
