104225 EXCHANGERS
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | United States | La Porte | Texas |
| Category: | Heat Exchangers |

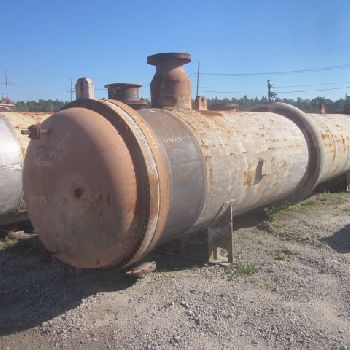

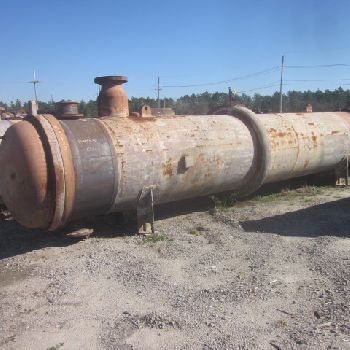

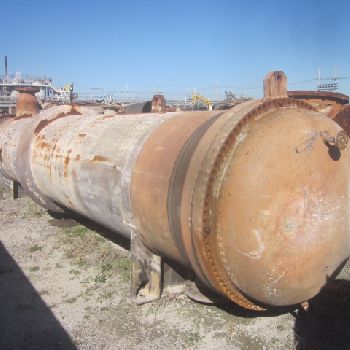

| Description: | CRUDE DMT COLUMN REBOILER MFG. BY MANNING & LEWIS IN 1992 JACKETED HEADS WITH EXPANSION JOINT |
| Technical Specifications: | ITEM NO: 104225 QTY: 1 ALLOY: S SQ.FT.: 5720 MATERIAL (S): CS MATERIAL (T): 316SS MATERIAL (H): 316SS PSI (S): 300 PSI (T): 100FV TEMP. DEG. F (S): 700 TEMP. DEG. F (T): 650 TUBE DIAMETER IN": 1 TUBE LENGTH FT’IN: 20’0 TUBE HOLES: 1093 TUBE PITCH: 1.25 TRI TUBE WALL: 14 BWG PASSES (S): 1 PASSES (T): 6 V/H: H CODE: NB TEMA TYPE: NEN SHELL NOZZLES: (2) 10 TUBE NOZZLES: (2) 10 NO. OF BAFFLES: 20 BAFFLE SPACING: 9.5 SHELL DIAMETER FT’IN: 4’2 O.A.L FT’IN: 26’4 |
Louisiana Chemical Equipment Company 11100 HWY 22577571 La Porte, TexasUnited States SHOW |
