X92925 GENERATORS
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | United States | La Porte | Texas |
| Category: | Generators |
| Manufacturer: | Elliott |
| Model: | BYRH-UG |

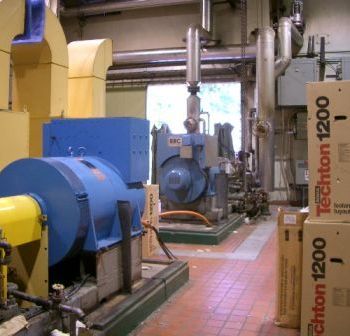

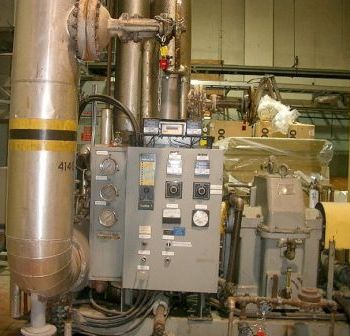

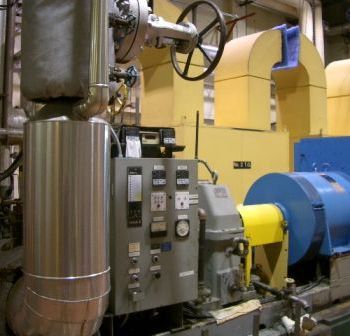

| Description: | 1007 KW 60 HZ ELLIOTT STEAM TURBINE GENERATOR SET WITH ELLIOTT TURBINES MODEL BYRH0UG SINGLE STAGE BACK PRESSURE STYLE UNITS ENGINE, GEARBOX AND GENERATOR ARE MOUNTED IN A COMMON SKID THE ELLIOTT GEARBOX REDUCES THE TURBINE SPEED OF 5750 RPM TO A FINAL SPEED OF 1800 RPM TO DRIVE A CONVENTIONAL 4-POLE, 2-BEARING ALTERNATOR RATED 1000KW/1176KVA WITH 0.85 PF 163 AMPS AND WOUND FOR 2400/4160V/3/60 HZ SERVICE RATED POWER 1350HP/1007KW RATED TURBINE SPEED 5750 RPM RATED INLET STEAM PRESSURE GAUGE 599 PSI RATED STEAM TEMPERATURE 750 DEG. F RATED EXHAUST PRESSURE 155 PSI THE PACKAGE INCLUDES GENERATOR CONTROL AND SYNCH PANELS WITH SCOPE NO BOILERS WITH UNITS |
| Technical Specifications: | ITEM NO: X92925 QTY: 2 KVA: 1176 KW: 1007 VOLTAGE: 4160 FREQUENCY: 60 DRIVER TYPE: STEAM TURBINE DRIVER HP: 1350 RPM: 5750 |
Louisiana Chemical Equipment Company 11100 HWY 22577571 La Porte, TexasUnited States SHOW | |
