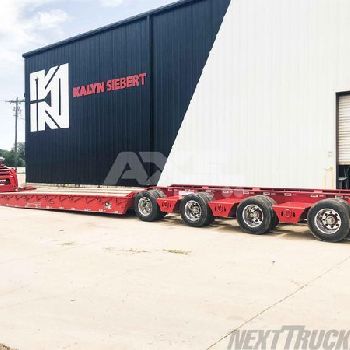

2020 KALYN SIEBERT
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | United States | Delray Beach | Florida |
| Category: | Lowbed Trailers |
| Manufacturer: | Kalyn/Siebert |
| Model: | 60 TON VERSAMAXX (4AXLES) |
| Year of Make: | 2020 |
| Description: | Capacity 120,000 lbs. concentrated in 16. GAWR & tire rating determine legal loads Overall Nominal Dimensions 8'-6" wide X 57- 0 length. Gooseneck 10- 11, main deck 26'- 0 Gooseneck Adjustable 5 position ride height / air latch neck-deck connection Swing Clearance 84with lugs for 24 flip neck(flip included) Upper Coupler 50 king pin height, 2 pin, and 15 setting Hydraulics PTO (15 GPM, 2800 PSI Max) two 8 x 12 main & one 4X 10 lift arm cylinders.Hydraulic controls in separate covered box Hydraulics Hydraulics lines at least 1/2 all with leak proof connections Connections Hydraulic connections on both sides of gooseneck (for winching operations) and at rear of trailer (for winching operations)(curb side of deck ,front and rear) w/one pair 20' jumper hoses Load Space, Nominal 26'-0 Deck Main Deck Height, Loaded 24 at rated capacity. 6 ground clearance Beams Four beam design - 100,000 psi yield flanges and 80,000 psi yield web (minimum). All 4 beams are the same height. Main beam |
| Technical Specifications: | Quantity: 1 Serial #: Not Listed Stock #: Not Listed |
