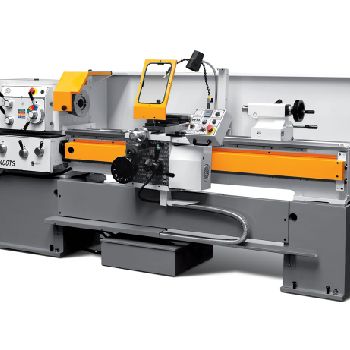

Lathe ZMM C 400 TS
$ 29,019
| Type: | Buy-It-Now |
| Location: | Austria | Wiener Neudorf | Niederösterreich |
| Category: | Lathes |
| Manufacturer: | ZMM Metalik |
| Model: | C 400 TS |
| Description: | Center height: 200 mm Turning diameter over bed: 400 mm Turning diameter over cross slide: 235 mm Turning diameter in the offset: 550 mm Bed width: 320 mm Distance between centers: 750 mm Spindle mount / DIN55027: No. 6 Spindle bore: 52 mm Spindle taper: MK 6 Speeds (variable with 4 levels): 18-98; 48-265; 144-790; 385-2,120 rpm Main engine: 7.5 kW Feed number: 80 Longitudinal feed: 0.015 - 0.6 mm / rev Cross feed: 0.0075 - 0.3 mm / rev Thread Count: 40 Metric: 0.25 - 7.5 mm Inch: 120 - 4 courses / " Module: 0.0625 - 1.875 DP: 480 - 16 Adjustment range cross slide: 235 mm Adjustment range upper slide: 110 mm Tailstock Pinole Diameter: 50 mm Tailstock recording: MK 4 Tailstock Pinolenweg: 100 mm Weight approx .: 1,530 kg |
HESSE+CO Maschinenfabrik GesmbH Industriezentrum NÖ-Süd, Straße 4, Objekt 8A-2351 Wiener NeudorfAustria | |
