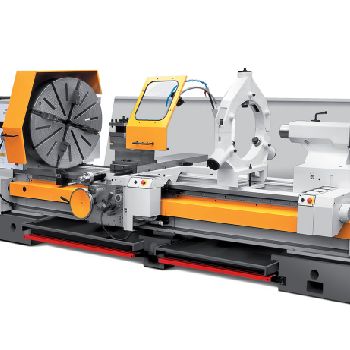

Lathe ZMM CU 800
$ 88,320
| Type: | Buy-It-Now |
| Location: | Austria | Wiener Neudorf | Niederösterreich |
| Category: | Lathes |
| Manufacturer: | ZMM Metalik |
| Model: | CU 800 |
| Description: | Center height: 400 mm Turning diameter over bed: 890 mm Turning diameter over cross slide: 490 mm Turning diameter in the offset: 1,050 mm Bed width: 700 mm Distance between centers: 1,500 mm Spindle mount / DIN55027: No. 15 Spindle bore: 155 mm Spindle taper: M 160 Speeds: 6.3 - 1250 rpm. (24) Main engine: 22/30 kW Feed number: 160 Longitudinal feed: 0.032 - 38.9 mm / rev Cross feed: 0.016 - 19.45 mm / rev Thread Count: Metric (80): 0,5 - 480 mm Inch (80): 60 - 1/16 gears / " Module (80): 0.125 - 120 DP (80): 240 - 1/4 Adjustment range cross slide: 525 mm Adjustment range upper slide: 270 mm Tailstock Pinole Diameter: 125 mm Tailstock recording: MK 6 Tailstock Pinolenweg: 260 mm Weight: 7,500 kg |
HESSE+CO Maschinenfabrik GesmbH Industriezentrum NÖ-Süd, Straße 4, Objekt 8A-2351 Wiener NeudorfAustria | |
