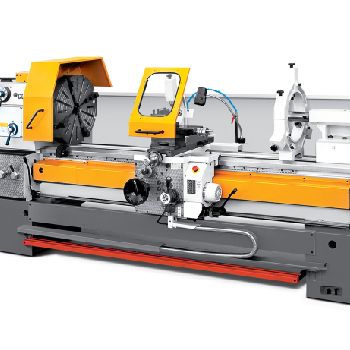

Lathe ZMM CU 630
$ 42,377
| Type: | Buy-It-Now |
| Location: | Austria | Wiener Neudorf | Niederösterreich |
| Category: | Lathes |
| Manufacturer: | ZMM Metalik |
| Model: | CU 630 |
| Description: | Center height: 315 mm Turning diameter over bed: 630 mm Turning diameter over cross slide: 430 mm Turning diameter in the offset: 830 mm Bed width: 400 mm Distance between centers: 2,000 mm Spindle mount / DIN55027: No. 11 Spindle bore: 103 mm Spindle taper: M 120 Speeds: 12.5 - 1250 rpm. (21) Main engine: 11 kW Feed number: 120 Longitudinal feed: 0.04 - 12 mm / rev Cross feed: 0.02 - 6 mm / rev Thread Count: Metric (64): 0.5-120 mm Inches (64): 60 - 1/4 gears / " Module (64): 0.125 - 30 DP (64): 240 - 1 Adjustment range cross slide: 315 mm Adjustment range upper slide: 130 mm Tailstock Pinole Diameter: 90 mm Tailstock recording: MK 5 Tailstock Pinolenweg: 230 mm Weight: 3,310 kg |
HESSE+CO Maschinenfabrik GesmbH Industriezentrum NÖ-Süd, Straße 4, Objekt 8A-2351 Wiener NeudorfAustria | |
