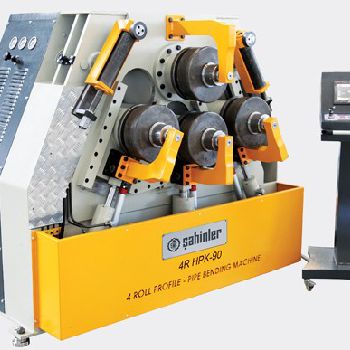

Profile bending machine with hydraulic roller delivery HESSE by SAHINLER 4R HPK 90
$ 22,152
| Type: | Buy-It-Now |
| Location: | Austria | Wiener Neudorf | Niederösterreich |
| Category: | Profile Bending Machines |
| Manufacturer: | Sahinler |
| Model: | 4R HPK 90 |
| Description: | Shaft diameter: 90 mm Roll diameter: 260 mm Powered rollers: 3 Engine performance: 5.5 kW Speed: 6.37 m / min. Bending capacities (cross-section / min diameter): Flat iron upright: 100x20 mm / 2000 mm; 80x20 mm / 800 mm; 30x10 mm / 300 mm Flat iron lying: 125x25 mm / 600 mm; 60x5 mm / 300 mm Quadradstahl: 45x45 mm / 500 mm; 15x15 mm / 380 mm Round steel: Ø 50 mm / 500 mm; Ø 15 mm / 380 mm Pipe: Ø 100x2.5 mm / 1200 mm; Ø 15x1.5 mm / 380 mm; Ø 3 "x5.48 / 800 mm; Ø 1/2 "x2,77 / 380 mm Molded pipe upright: 80x25x3 mm / 800 mm; 25x15x2 mm / 350 mm Shaped square tube: 70x3 mm / 1300 mm; 25x2 mm / 400 mm Angle iron thighs outside: 80x80x8 mm / 800 mm; 30x30x3 mm / 450 mm Angle iron thighs inside: 70x70x7 mm / 700 mm; 30x30x3 mm / 450 mm UPN thighs outside: UPN 140/1600 mm; UPN 120/900; UPN 100/600 UPN thighs inside: UPN 140/1600 mm; UPN 120/1000; UPN 100/800 |
HESSE+CO Maschinenfabrik GesmbH Industriezentrum NÖ-Süd, Straße 4, Objekt 8A-2351 Wiener NeudorfAustria | |
