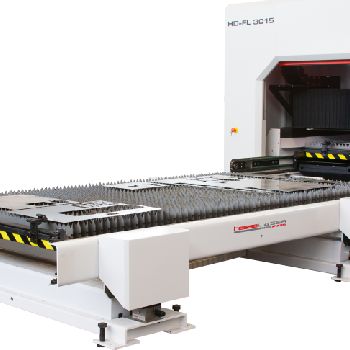

Fiber laser HESSE by DURMA HD-F 3015
$ 306,261
| Type: | Buy-It-Now |
| Location: | Austria | Wiener Neudorf | Niederösterreich |
| Category: | Laser Cutting Machines |
| Manufacturer: | Durma |
| Model: | HD-F 3015 |
| Description: | Cutting range: 3,060 x 1,530 mm Laser power: 0.2 - 2.0 kW Wavelength: 1,070 - 1,080 nm Polarization: fortuitously Max. Pulse rate: 5.0 kHz average power consumption: 25 kWh Max. Sheet thicknesses: Structural steel: 12 mm Stainless steel: 6 mm Aluminum: 6 mm Working area: X axis: 3,060 mm Y-axis: 1,530 mm Z-axis: 160 mm Max. Metal sheet: 3,000 x 1,500 mm Max. Plate weight: 1,000 kg Dynamics and accuracy: Max. Velocity X-axis: 120 m / min Max. Speed Y-axis: 120 m / min Max. Simultaneous speed: 170 m / min Max. Acceleration: 20 m / s² positioning accuracy: +/- 0.05 mm repeatability: +/- 0.05 mm Space requirements: 11,000 x 6,000 mm Length: 9,440 mm Width: 2,750 mm Height: 2,420 mm Weight approx .: 12,000 kg |
HESSE+CO Maschinenfabrik GesmbH Industriezentrum NÖ-Süd, Straße 4, Objekt 8A-2351 Wiener NeudorfAustria | |
