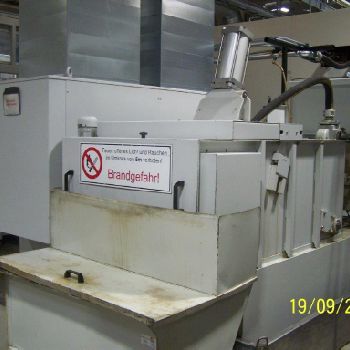

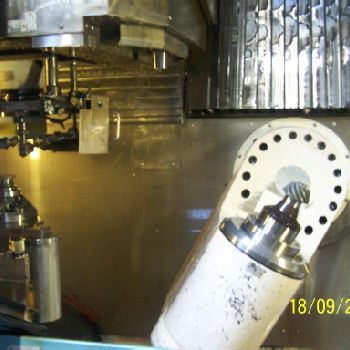

KLINGELBERG-OERLIKON G27
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany | Sankt Leon-Rot | Baden-Württemberg |
| Category: | Gear Cutting Machines |
| Manufacturer: | OERLIKON |
| Year of Make: | 2005 |
| Description: | CNC Bevel Gear Grinder | Year 2005 | Workpiece / Diameter / Diameter 300 mm | Modules / Modules 0.7 8 mm | Grinding head (X) | Travel / Travel X 340 mm | Speed / Spindle speed 3000 min -1 | Grinding slide (Y) | Travel / Travel Y 1310 mm | Travel speed / Feed rate max. 60 m / min | Radial axis / Radial axis (Z) | Travel distance / Travel Z 400 mm | Grinding drive main spindle / Main spindle (A 1) | Speed / Spindle speed 8000 min -1 | Eccentric / Excenter axis (A 2) | Speed / Spindle speed 8000 min -1 | Workpiece axis (B) | Speed / Spindle speed 6500 min -1 | Travel speed 86400 / min | Swivel axis / Inclination (C) | Speed / Spindle speed 100 min -1 | Traversing speed / Travel speed 10800 / min | Cooling liquid unit 2300 l | Electric / Electric system 400 V / 50 Hz | Connected load / Power installed | Machine / Machine 120 kVA | Cooling system / Cooler 26 kVA | Space required 3.650 x 5.500 x 3,050 m | Weight / Weight | Machine / Machine 18,500 kg | KSS-System / Cooler 3,350 kg |
