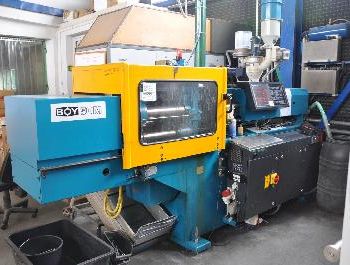

BOY 50M INJECTION
$ 4,627
| Type: | Buy-It-Now |
| Location: | Poland | Jelenia Góra | Woj. Dolnośląskie |
| Category: | Injection Molding Machines |
| Description: | click play to play the movie machine description BOY 50M injection molding machine built in 1991 in Germany. Technical parameters of the BOY 50M injection molding machine: - mold clamping force: 50 tons - opening force: 50.2 kN - mold stroke: 350 mm - mold closing system: hydraulic - minimum distance between panels: 250 mm - maximum distance between panels: 600 mm - clearance between columns (height x width): 305 x 305 mm - column diameter: 55 mm Ejector Force: - pushing / pulling: 18.1 / 12.0 kN - ejector stroke: 80 (130) mm - plate size: 500 x 500 mm Injection unit: - screw diameter: fi 38 mm - injection pressure: 1360 bar - injection capacity: 136 cm3 - injection force: 154.4 kN - ejector stroke: 120 mm - PS plasticization efficiency, 394 min-1: 64 kg / h - screw torque: 406, 325 Nm - screw speed: 314, 394 min-1 - nozzle pressure: 66 kN - nozzle stroke: 210 mm - heating capacity: 3 x 1950 + 450 + 200 W - granulate container: 58 liters - scre |
