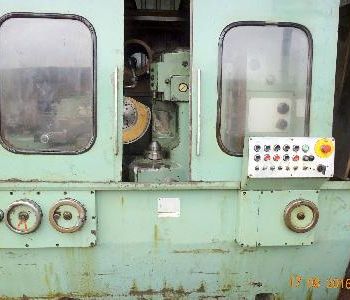

GRINDING SAND WHEELS KOMSOMOLEC 5B833
$ 6,462
| Type: | Buy-It-Now |
| Location: | Poland | Jelenia Góra | Woj. Dolnośląskie |
| Category: | Angle Grinders |
| Description: | machine description The grinding machine for cylindrical gears KOMSOMOLEC 5B833 by the USSR was built in 1981. Technical data : - the largest outer diameter of the gears: 320 mm - smallest gear diameter (with an abrasive diameter of 400 mm): 40 mm - min. number of teeth of grinded wheels: 12 - max. number of teeth on grinded wheels: 200 - max. rim width of ground gears with straight teeth: 150 - min. gear module normal: 0.5 mm - max. gear module normal: 4.0 mm - pinion angle of the gears: 14-30 degrees - max. tilt angle of teeth of the milled blank: + -45 degrees Subject carriage: - the largest support passage length: 180 mm - the largest turning angle of a support (for grinding helical teeth): + -45 degrees - bottom bracket turn by one division of the scale: 30 min. - bottom bracket turn by one plot of nonius scale: 30 seconds - work spindle taper: Morse 3 - upper headstock cone: Morse 3 Wheel headstock: - smallest wheel diameter: 330 mm - largest wheel diam |
