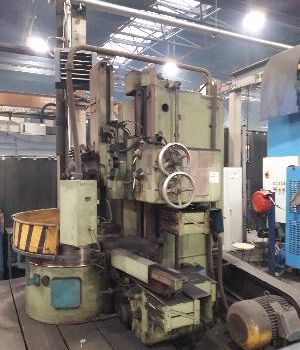

LATHE MACHINE DEFUM KNA 110/135
$ 11,633
| Type: | Buy-It-Now |
| Location: | Poland | Jelenia Góra | Woj. Dolnośląskie |
| Category: | Lathes |
| Description: | click play to play the movie machine description DEFUM KNA 110/135 vertical lathe manufactured in 1988 by Dąbrowska DEFUM Machine Tool Factory. Characteristic data: - table diameter: 1100 mm - maximum turning diameter with upper support: 1350 mm - maximum turning diameter with side support: 1100 mm - maximum turning diameter: 950 mm - maximum workpiece weight: 4000 kg - table speed: 6.3-200 rpm - table speed range: 16 - distance between floor and table surface: 950 mm - main engine power: 30 kW - lathe dimensions: 2750 x 2350 x 3100 mm - machine weight DEFUM KNA 110/135: 11000 kg Crossbeam: - fast feeds of the cross beam: 500 mm / min. - vertical feed: 800 mm Upper support: - vertical feed of the frame with the tool holder (Z axis): 600 mm - longitudinal slide feed (X axis): 700 mm - number of tool holes in the tool holder: 5 - tool holder diameter: 60 mm - working feeds: 12: 0.21-10 mm / min. - rapid feeds: 1880 mm / min. Side support: - Ram f |
