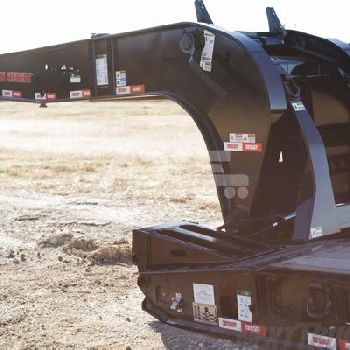

2020 KALYN SIEBERT
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | United States | Delray Beach | Florida |
| Category: | Lowbed Trailers |
| Manufacturer: | Kalyn/Siebert |
| Model: | 55 TON HYDRAULIC NECK |
| Year of Make: | 2020 |

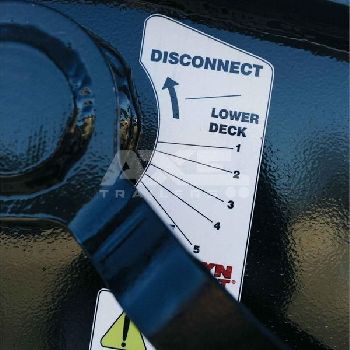

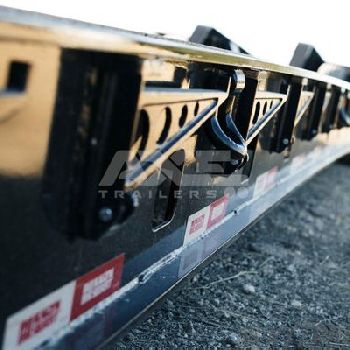

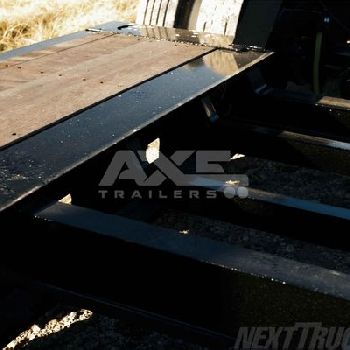

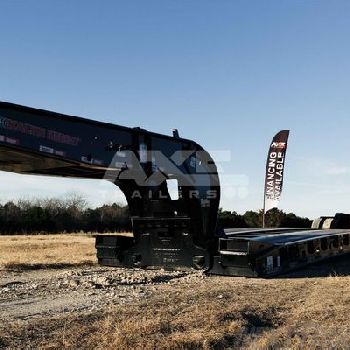

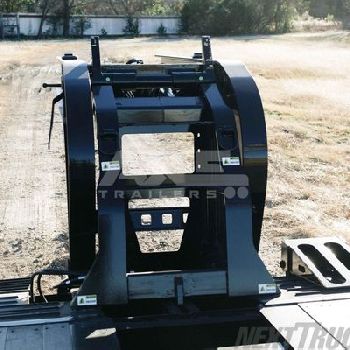

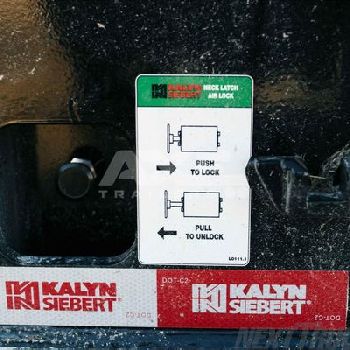

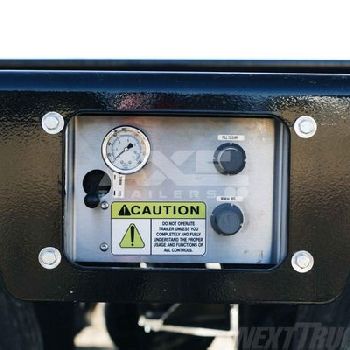

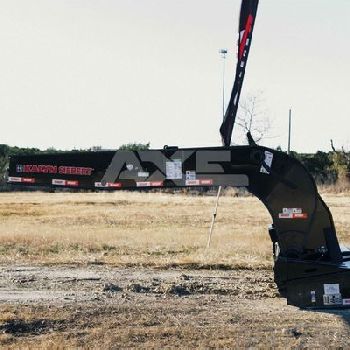

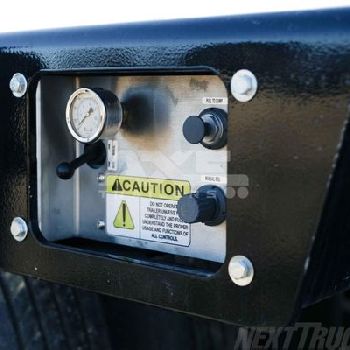

| Description: | Capacity 110,000 lbs distributed / 100,00 lbs. concentrated in 10' GAWR & tire rating determine legal loads Nominal Dimensions 8- 6 wide X 53- 0" length (gooseneck 12- 10 / main deck 26- 0 / rear deck 14- 2) Gooseneck Hydraulic narrow neck / adjustable 5 position ride height / air latch neck - deck connection Swing Clearance 96 / 108 Gooseneck Lugs None Upper Coupler 50 king pin height / 2 pin / 15 setting Hydraulics PTO powered as standard (15 GPM, 2800 PSI Max) / two 9 x 16 main & one 4X 10 lift arm cylinders Load Space, Nominal 26- 0 for main deck Main Deck Height 20 at rated capacity / 6 ground clearance Beams Four beam design - 100,000 psi yield minimum flanges / 80,000 psi minimum yield webs / all 4 beams are the same height Deck Cross Members 8 I-Beams on 24 centers / 4 Jr I-Beams alternating on 12 centers (outside bays) Floor 1-3/8 Apitong (open center) / floor screws every cross member Outriggers 13 pair removable swing type (brackets raised to top flange) / 1 pair hea |
| Technical Specifications: | Quantity: 1 Serial #: Not Listed Stock #: Not Listed |
