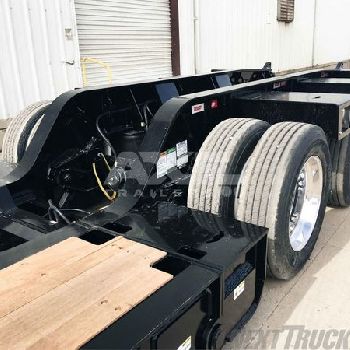

2020 KALYN SIEBERT
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | United States | Delray Beach | Florida |
| Category: | Lowbed Trailers |
| Manufacturer: | Kalyn/Siebert |
| Model: | 60TON EXTREME SERIES |
| Year of Make: | 2020 |

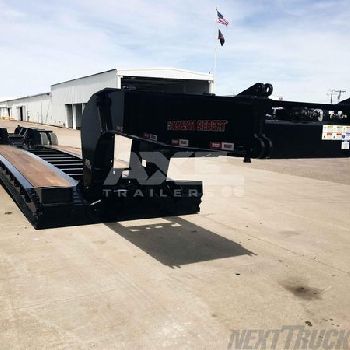

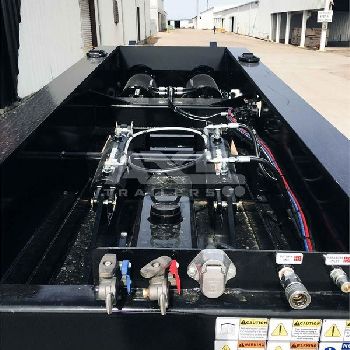

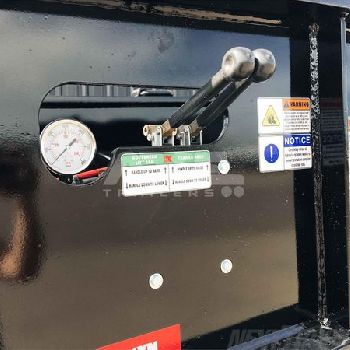

| Description: | Capacity 120,000 lbs in 12 / GAWR & tire rating determine legal loads Overall NominalDimensions 8- 6 wide X 56- 2 length / gooseneck 13- 7 / main deck 28-1" / rear deck 14- 6 Gooseneck Adjustable 5 position ride height / air latch neck-deck connection Swing Clearance 96 / 108 (168 with 60 gooseneck extension) Gooseneck Extension None (60 gooseneck extension not included) Upper Coupler 50 king pin height / 2 pin / 15 setting Hydraulics PTO powered as standard (15 GPM, 2800 PSI Max) / two 9 x 16 main & two 4X 10 lift arm cylinders Load Space, Nominal 28- 1 for main deck Main Deck Height, Loaded 22 at rated capacity / 6 ground clearance Beams Four beam design - 100,000 psi minimum yield flanges and 80,000 psi minimum yield webs. All 4 beams are the same height / added steel to front side-rails for extra support Cross Members 8 I-Beams / 24 centers Floor 1-3/4 Apitong (open center) / carriage bolts every other cross member Outriggers 14 pair removable swing type (brackets raised to |
| Technical Specifications: | Quantity: 1 Serial #: Not Listed Stock #: Not Listed |
